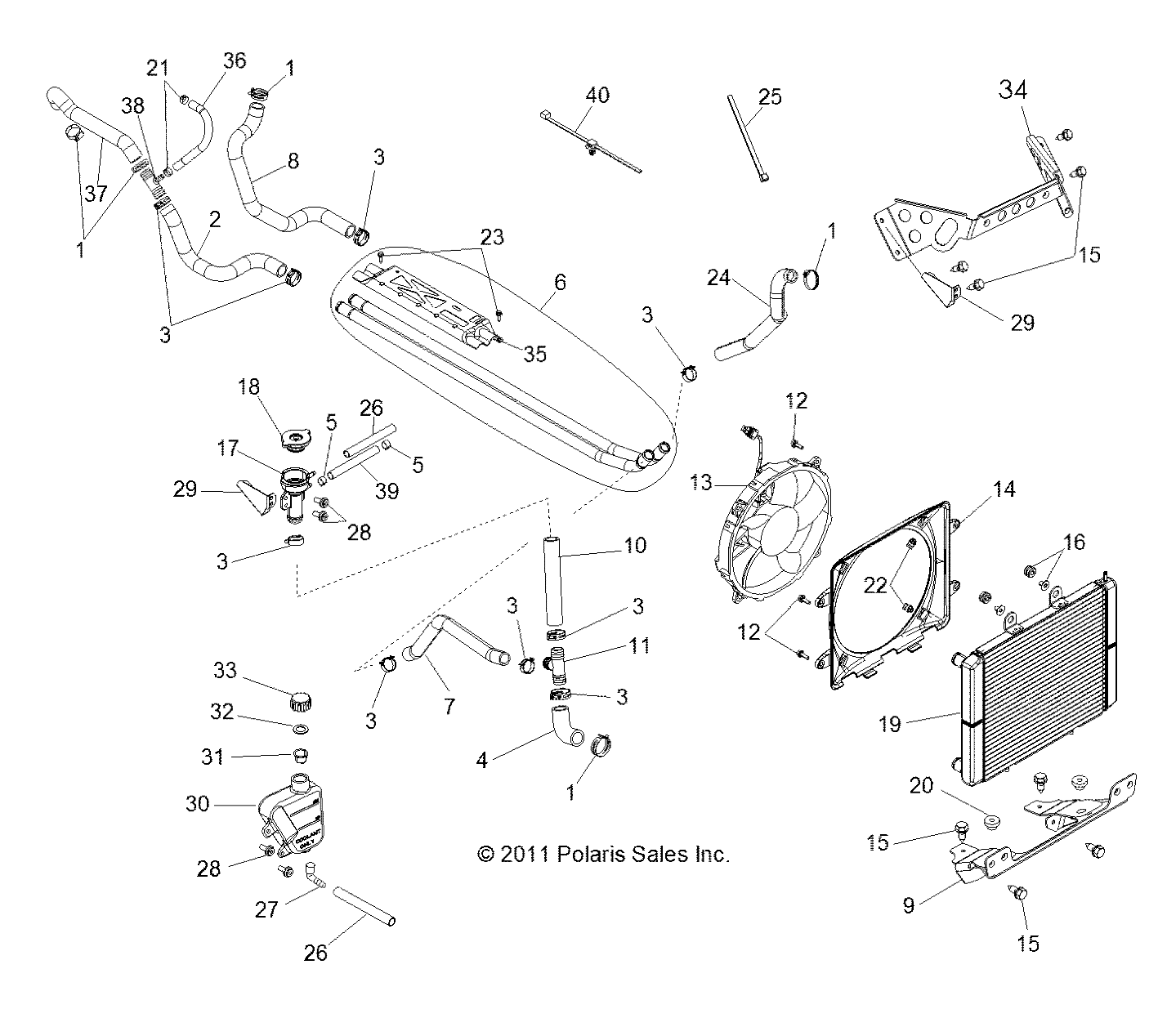

R12VH76AB/AD/AF/AH/AI/AJ/AM/EAB/EAS

ENGINE, COOLING SYSTEM

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	7081174	Clamp, Hose	5	9.82+iva
1	7081174	Clamp, Hose	5	9.82+iva
1	7081174	Clamp, Hose	5	9.82+iva
1	7081174	Clamp, Hose	5	9.82+iva
2	5414206	Hose, Engine Inlet, Rear Consulte-nos podemos ter uma solução	1	Obsoleta
3	7080844	Clamp, Springband	9	12.78+iva
3	7080844	Clamp, Springband	9	12.78+iva
3	7080844	Clamp, Springband	9	12.78+iva
3	7080844	Clamp, Springband	9	12.78+iva
3	7080844	Clamp, Springband	9	12.78+iva
3	7080844	Clamp, Springband	9	12.78+iva
3	7080844	Clamp, Springband	9	12.78+iva
3	7080844	Clamp, Springband	9	12.78+iva
4	5414202	Hose, Radiator, Lower	1	39.08+iva
5	7080003	Clamp, Hose	2	2.68+iva
5	7080003	Clamp, Hose	2	2.68+iva
6	1240648	Asm., Tube, Coolant [Incl. 35]	1	396.55+iva
7	5414204	Hose, Lower, Front	1	62.55+iva
8	5414205	Hose, Engine Outlet, Rear Consulte-nos podemos ter uma solução	1	Obsoleta
9	5254709-067	Bracket, Mount, Radiator, Lower, Black	1	73.07+iva
10	5414203	Hose, Remote Fill Neck	1	46.92+iva
11	7052373	T-Connector	1	12.78+iva
12	7516822	Screw	8	7.13+iva
12	7516822	Screw	8	7.13+iva
13	2410413	Asm., Fan	1	403.38+iva
14	5437845	Shroud, Fan	1	78.18+iva
15	7517386	Screw	10	5.72+iva
15	7517386	Screw	10	5.72+iva
15	7517386	Screw	10	5.72+iva
16	5411975	Asm., Grommet and Insert Consulte-nos podemos ter uma solução	2	Obsoleta
17	5439079	Filler, Remote	1	39.08+iva
18	1240300	Cap, Pressure	1	65.67+iva
19	1240444	Asm., Radiator, Core Esta Referencia foi alterada para : 1241480	1	Alterada
20	5410584	Bushing, Mount, Radiator, Lower	2	7.35+iva
21	7080474	Clamp, Hose	2	9.82+iva
22	7547366	U-Clip	4	7.13+iva
23	7519342	Screw	2	5.72+iva
24	5414201	Hose, Radiator, Upper	1	62.55+iva
25	7080761	CABLE-TIE,10-102MM,WEATH.-RES.	2	4.17+iva
26	8450003-1525	Line, Fuel	AR	107.17+iva
26	8450003-1525	Line, Fuel	AR	107.17+iva
27	7052065	Fitting, 90 Degree	1	13.85+iva
28	7512084	Screw	4	5.72+iva
28	7512084	Screw	4	5.72+iva
29	5253450	Bracket, Filler Neck	1	26.65+iva
29	5253450	Bracket, Filler Neck	1	26.65+iva
30	5436936	Tank, Surge	1	121.47+iva
31	5433774	Plug, Cap	1	10.47+iva
32	5810279	GASKET, OVER FLOW CAP	1	7.35+iva
33	5430743	Cap, Overflow	1	10.47+iva
34	5254710-458	Bracket, Mount, Radiator, Upper, Matte Black	1	42.65+iva
35	5254161-329	Bracket, Fuel Tank Mount, Center, Black	1	42.65+iva
36	5413949	Hose, Bypass, Formed Consulte-nos podemos ter uma solução	1	Obsoleta
37	5414207	Hose, Bypass, Formed	1	46.92+iva
38	7052494	Connector, Tee	1	11.72+iva
39	8450120-600	Line, Fuel	AR	107.17+iva
40	7081496	CLIP-ROUTING	1	7.13+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
