R12VH57AD

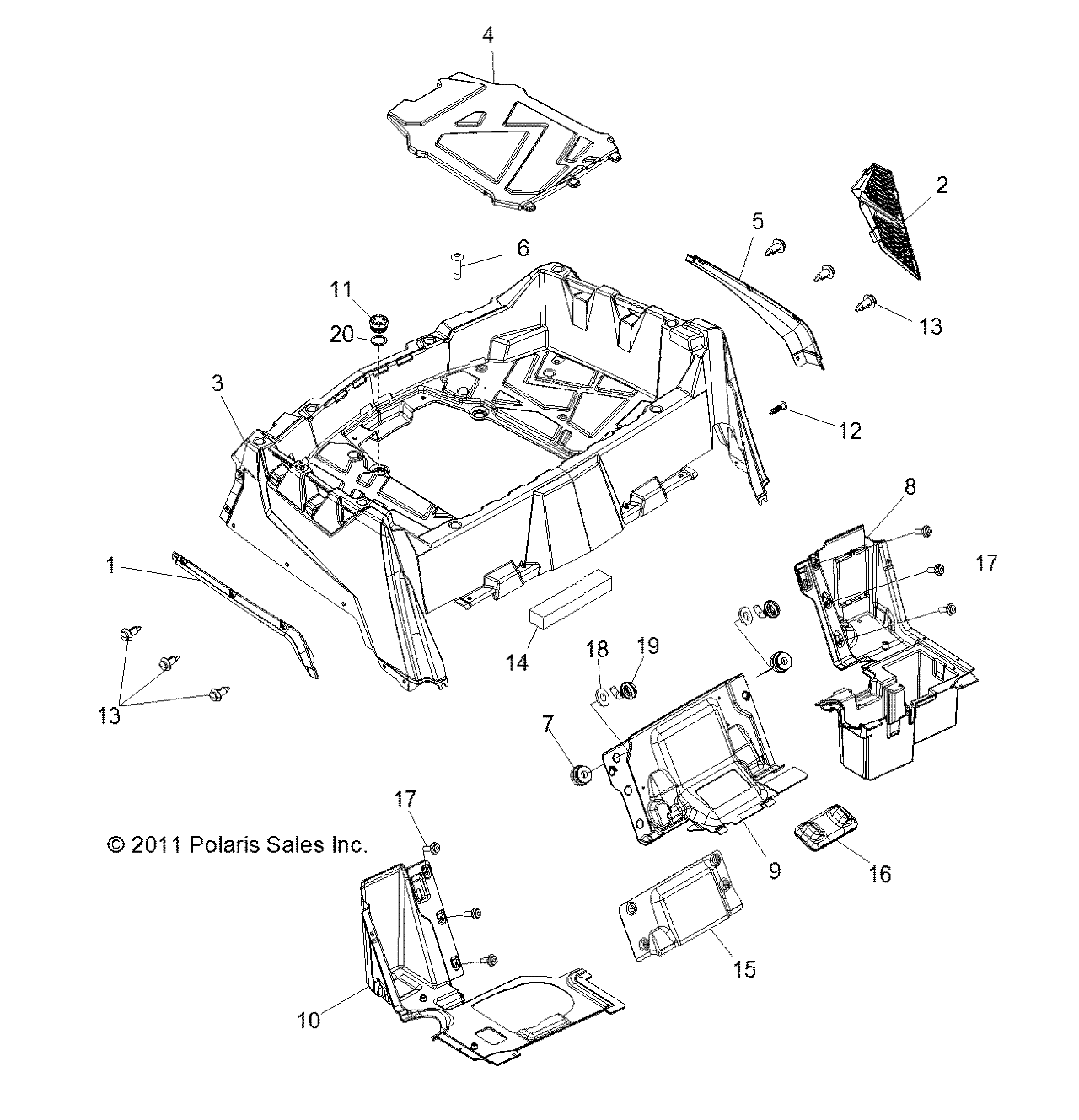

BODY, REAR RACK AND FENDERS
| # | Referencia | Descrição | Quant(*) | PVP | Stock |
|---|---|---|---|---|---|
| 1 | 5438956-070 | Flair, Fender, Rear, RH Black | 1 | 91.13+iva |  |
| 2 | 5438941-070 | Panel, Filter, Fender, LH, Black | 1 | 71.08+iva | |
| 3 | 2634857-070 | Asm., Rack, Rear, Black [Incl. Decal] | 1 | 476.53+iva | |
| 4 | 5438906-070 | Box, Maint Panel, Removable | 1 | 78.98+iva | |
| 5 | 5438955-070 | Flair, Fender, Rear, LH, Black | 1 | 91.13+iva | |
| 6 | 7517685 | Screw | 11 | 2.87+iva | |
| 7 | 5413428 | Grommet, Latch | 2 | 5.77+iva | |
| 8 | 5438336-070 | Panel, Divider, Rear, LH, Black | 1 | 137.12+iva | |
| 9 | 5439327-070 | Panel, Divider, Rear, Black | 1 | 115.47+iva | |
| 10 | 5438957-070 | Panel, Divider, Rear, RH, Black | 1 | 86.60+iva | |
| 11 | 5412507 | Grommet | 2 | 9.92+iva |  |
| 12 | 7512026 | Screw | 7 | 2.15+iva | |
| 13 | 7661855 | Rivet | 6 | 2.15+iva | |
| 13 | 7661855 | Rivet | 6 | 2.15+iva | |
| 14 | 5813751 | Seal, Panel | 1 | 17.23+iva | |
| 15 | 5813634 | Shield, Foil, Front Panel | 1 | 91.58+iva | |
| 16 | 5813553 | Cover, Seat Belt Buckle, Rear | 1 | 47.37+iva | |
| 17 | 7512084 | Screw | 6 | 2.15+iva | |
| 17 | 7512084 | Screw | 6 | 2.15+iva | |
| 18 | 7555919 | Washer | 2 | 7.20+iva | |
| 19 | 7081500 | Latch, 1/4 Turn | 2 | 8.68+iva | |
| 20 | 7556509 | Bushing [Built 12/05/11 and Before] | 2 | 2.87+iva | |
- • (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
