R13VH57FX

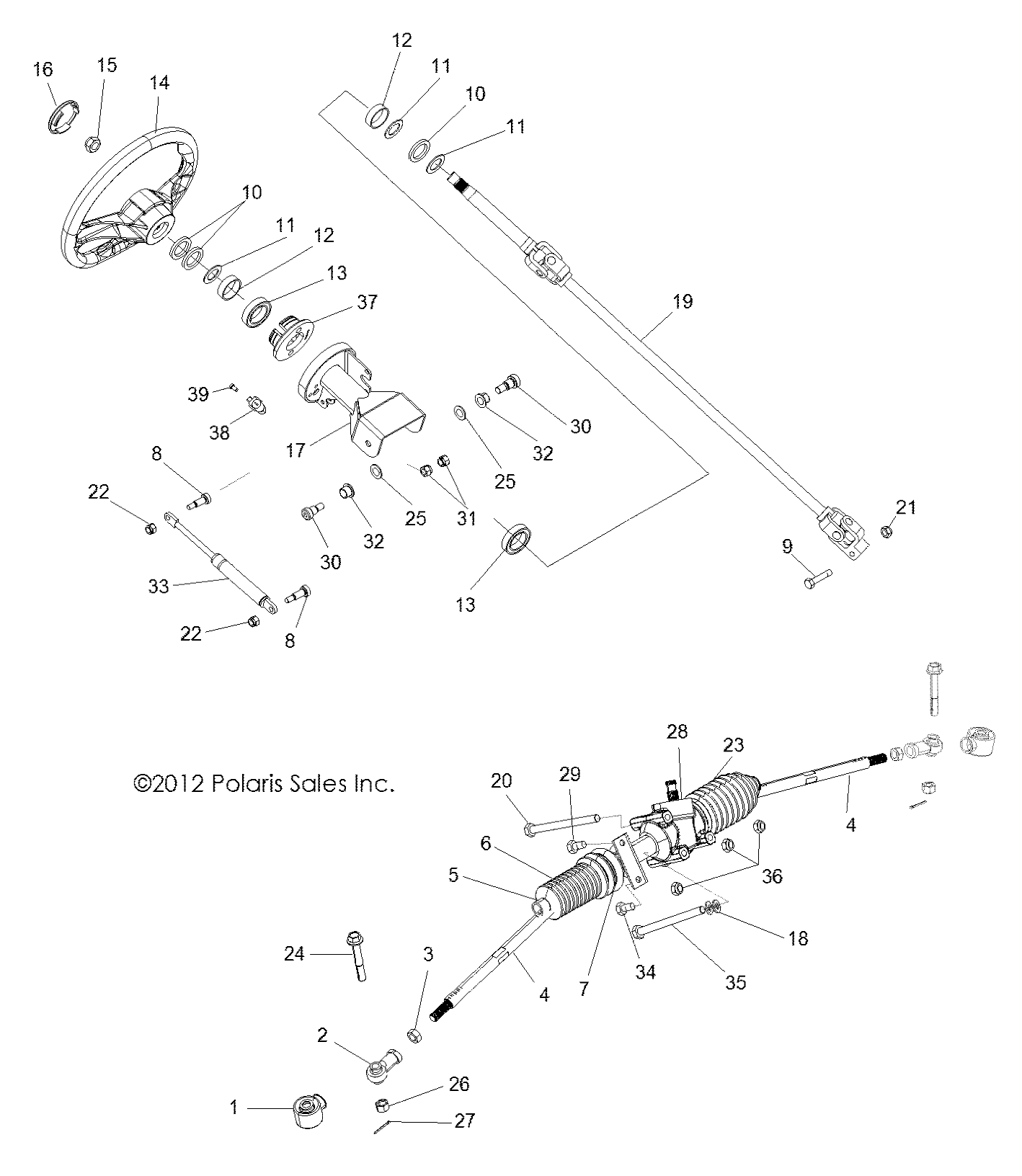

STEERING, STEERING ASM.
Responsive image
#ReferenciaDescriçãoQuant(*)PVPStock
1 5411920 Boot, Seal, Rod End Esta Referencia foi alterada para : 5412929 2AlteradaStock Consultar
2 7061054 Rod End Esta Referencia foi alterada para : 7061138 2AlteradaStock Consultar
3 7547028 Nut, Jam, LH 27.13+ivaStock Sim
4 ------- Tie Rod, Inner 2+ivaStock Consultar
4 ------- Tie Rod, Inner 2+ivaStock Consultar
5 7080978 Clamp, Boot, Small 27.13+ivaStock Consultar
6 5412013 Boot, Passenger, Side Rack 158.45+ivaStock Consultar
7 7080979 Clamp, Boot, Large 211.72+ivaStock Consultar
8 7518786 Bolt, Shoulder 27.35+ivaStock Consultar
8 7518786 Bolt, Shoulder 27.35+ivaStock Consultar
9 7518644 Screw 17.13+ivaStock Consultar
10 7556482 Washer 35.72+ivaStock Consultar
10 7556482 Washer 35.72+ivaStock Consultar
11 7556483 Washer 35.72+ivaStock Consultar
11 7556483 Washer 35.72+ivaStock Consultar
11 7556483 Washer 35.72+ivaStock Consultar
12 5252796 Spacer, Steering Shaft 27.13+ivaStock Consultar
12 5252796 Spacer, Steering Shaft 27.13+ivaStock Consultar
13 3514646 Bearing, Steering 221.32+ivaStock Consultar
13 3514646 Bearing, Steering 221.32+ivaStock Consultar
14 1823623 Wheel, Steering 1186.45+ivaStock Consultar
15 7547188 Nut 17.35+ivaStock Consultar
16 5436536 Cap, Steering Wheel 148.47+ivaStock Consultar
17 1017327-458 Tube, Pivot, W/Steering Lock, Matte Black 1225.62+ivaStock Consultar
18 7558402 Washer, Flat 32.85+ivaStock Consultar
19 1823727 Shaft, Steering, Upper/Lower 1205.10+ivaStock Consultar
20 7518895 Bolt 15.72+ivaStock Consultar
21 7547385 Nut, Nylok 15.72+ivaStock Consultar
22 7546703 NUT-6MM X 1 NYLOK-Z 24.28+ivaStock Sim
22 7546703 NUT-6MM X 1 NYLOK-Z 24.28+ivaStock Sim
23 5412012 Boot, Driver Side, Rack 163.33+ivaStock Consultar
24 7517909 Bolt 211.72+ivaStock Sim
25 7555919 Washer 25.72+ivaStock Sim
25 7555919 Washer 25.72+ivaStock Sim
26 7547333 Nut, Flange 25.72+ivaStock Sim
27 7661203 Pin, Cotter 24.28+ivaStock Sim
28 1823632 Asm., Gear Box, Steering [Incl. 2-7,23] 1673.91+ivaStock Consultar
29 7512325 Bolt 17.13+ivaStock Sim
30 7517607 Bolt, Shoulder 211.72+ivaStock Consultar
30 7517607 Bolt, Shoulder 211.72+ivaStock Consultar
31 7542451 Nut, Nylok 24.28+ivaStock Consultar
32 5431107 Bushing, Pedal Pivot 212.27+ivaStock Consultar
32 5431107 Bushing, Pedal Pivot 212.27+ivaStock Consultar
33 7043810 Asm., Shock, Oil Locking 1150.42+ivaStock Consultar
34 7512371 Bolt 17.13+ivaStock Consultar
35 7515382 Bolt 27.13+ivaStock Sim
36 7542324 NUT-5/16-18 NYLOK-Y 34.28+ivaStock Sim
37 5632295-458 Collar, Steering Lock, Matte Black 177.93+ivaStock Consultar
38 7081498 Lock, Steering Consulte-nos podemos ter uma solução1ObsoletaStock Consultar
39 7518457 Screw Consulte-nos podemos ter uma solução2ObsoletaStock Consultar


• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
