Z17YAV17A2/A5/N2/N5

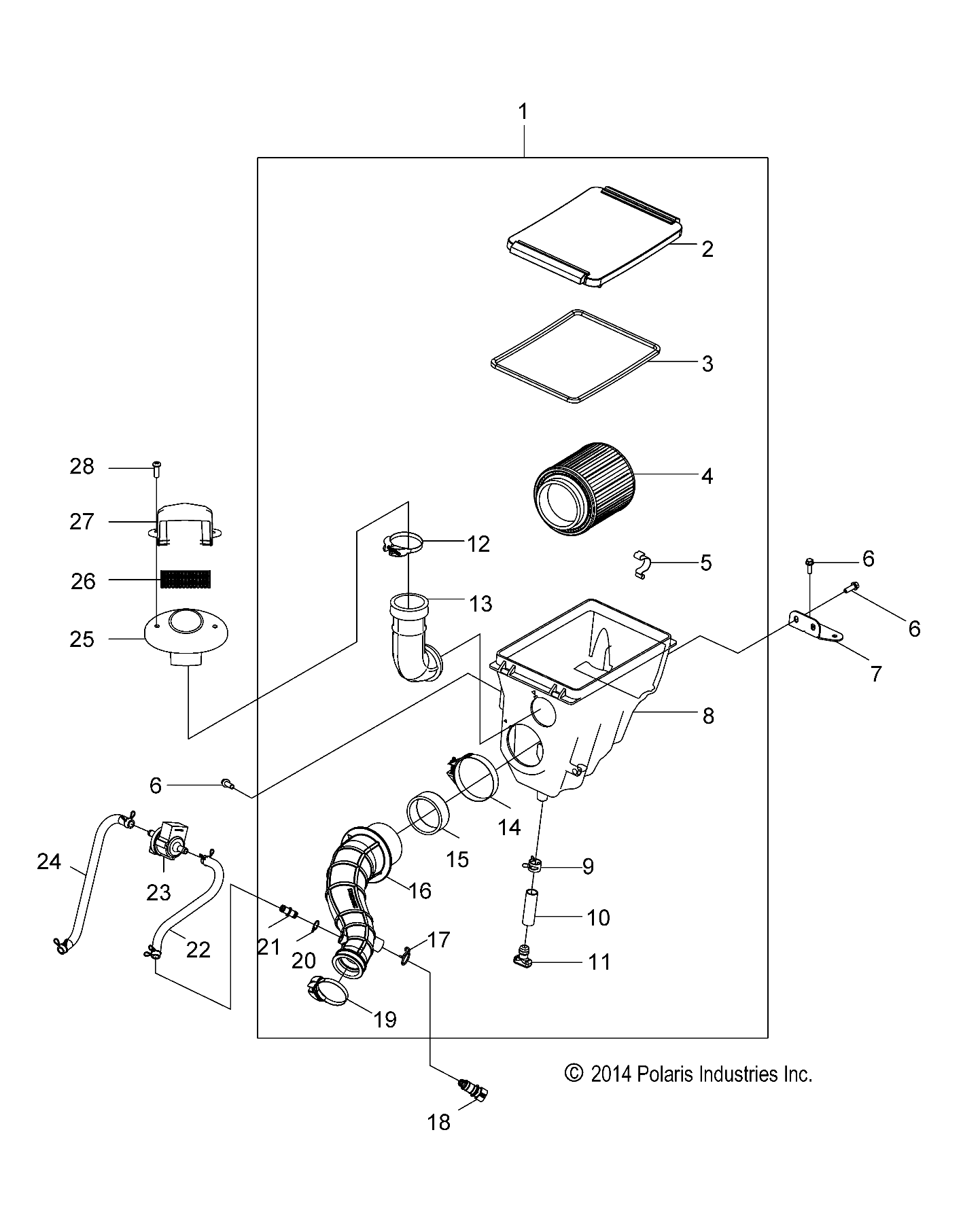

ENGINE, AIR INTAKE SYSTEM

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	-------	ASM., CLEANER, AIR	1	+iva
2	0452560	COVER, AIR BOX	1	63.18+iva
3	0452569	GASKET, COVER	1	14.00+iva
4	1262218	ASM., FILTER, AIR BOX	1	42.63+iva
5	0452565	CLIP, AIR BOX	4	7.43+iva
6	0454785	BOLT	5	7.20+iva
6	0454785	BOLT	5	7.20+iva
6	0454785	BOLT	5	7.20+iva
7	0454780	BRACKET, SUPPORT	1	12.92+iva
8	0454850	BOX, AIR CLEANER	1	78.73+iva
9	0452566	CLAMP	1	7.43+iva
10	0452567	HOSE, DRAIN	1	8.45+iva
11	0452568	PLUG, TRAP	1	21.53+iva
12	0454716	CLAMP, BOOT	1	12.92+iva
13	0454774	INLET, AIR BOX, MID	1	57.43+iva
14	0452561	CLAMP	1	12.40+iva
15	0452557	SPACER, AIR FILTER	1	39.48+iva
16	0455060	BOOT, AIR BOX	1	43.07+iva
17	0455061	CLIP	1	7.43+iva
18	0455062	SENSOR, INTAKE AIR, IAT	1	129.90+iva
19	0454277	CLAMP, HOSE	1	18.30+iva
20	0455063	CLIP	1	7.43+iva
21	0455064	NIPPLE-INTAKE,DUCT	1	9.92+iva
22	0455065	TUBE, BRATHER, VENTILATED	1	25.27+iva
23	0455066	VALVE, AIR, IDLE	1	91.85+iva
24	0455067	TUBE, BREATHER, VENTILATED	1	25.27+iva
25	0454784	MOUNT, AIR BOX, INLET	1	28.72+iva
26	0454779	MESH, METAL	1	21.53+iva
27	0454777	INLET, COVER	1	72.17+iva
28	0450622	BOLT	2	4.32+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
