Z22ASE99A5/B5

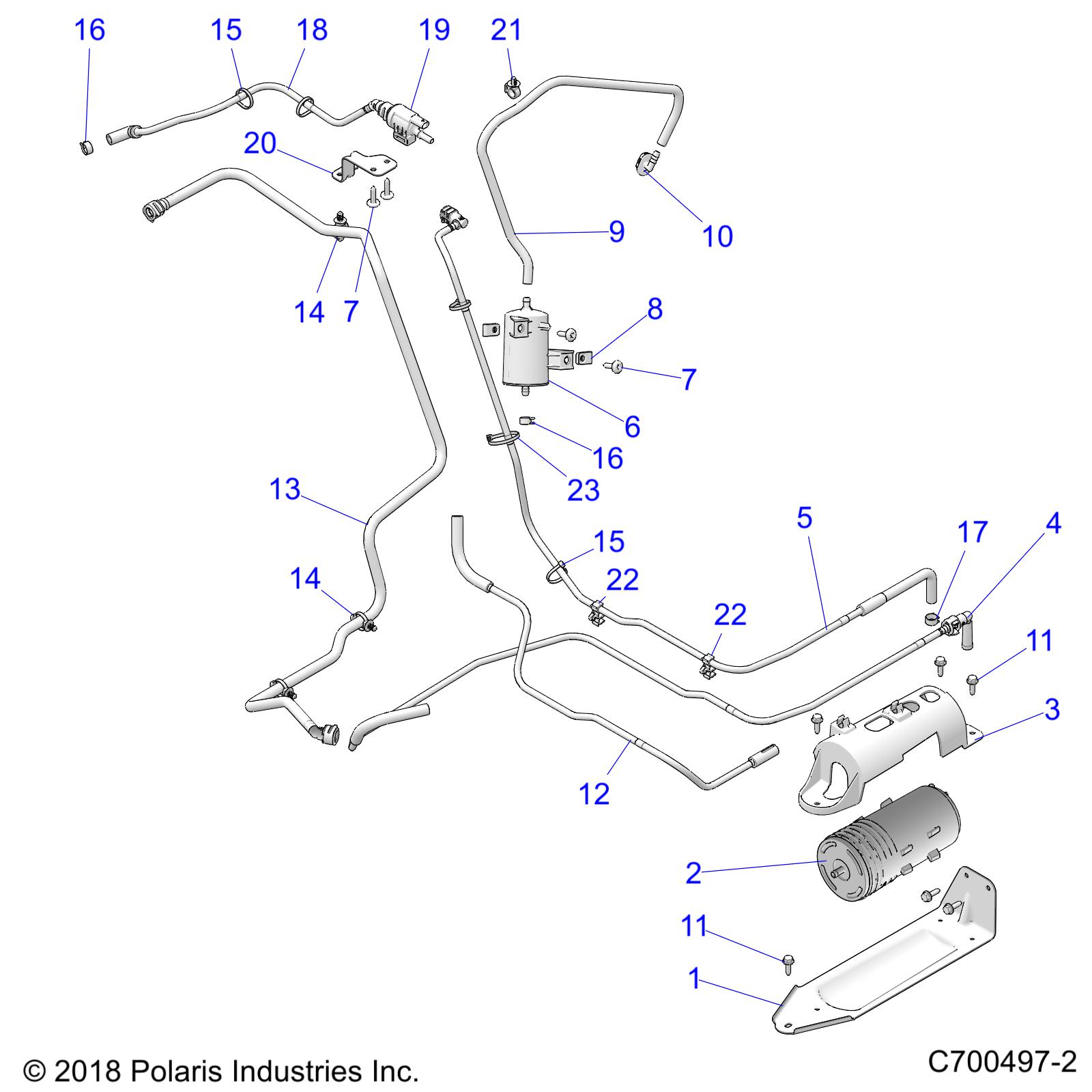

FUEL SYSTEM, LINES, EVAP

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2521715	ASM-LINE,TANK TO CANISTER	1	151.87+iva
2	2521750	FILTER-CANISTER VENT	1	68.86+iva
3	2521839	ASM-FUEL LINE	1	193.29+iva
4	2521868	ASM-LINE,CANISTER TO PURGE	1	86.57+iva
5	2521869	ASM-LINE,PURGE TO TB	1	108.21+iva
6	2521893	CANISTER-ACTIVATED CARBON,BFL	1	144.96+iva
7	2521964	VALVE-PURGE	1	91.81+iva
7	2521964	VALVE-PURGE	1	91.81+iva
8	2522086	ASM-LINE,VENT TO CANISTER	1	100.99+iva
9	5266465-329	BRKT-PURGE,ECOAT	1	21.52+iva
10	5453458-070	BRKT-MNT CANISTER,BLK	1	18.29+iva
11	5453464	FITTING-VENT LINE,90	1	8.68+iva
11	5453464	FITTING-VENT LINE,90	1	8.68+iva
12	7080003	Clamp, Hose, Red	1	2.68+iva
13	7080761	CABLE-TIE,10-102MM,WEATH.-RES.	5	4.22+iva
14	7081432	CLAMP-HOSE, (LARGE GREEN)	2	7.20+iva
14	7081432	CLAMP-HOSE, (LARGE GREEN)	2	7.20+iva
15	7081496	CLIP-ROUTING	2	7.43+iva
15	7081496	CLIP-ROUTING	2	7.43+iva
16	7082246	CLIP-TRIPLE	2	9.91+iva
16	7082246	CLIP-TRIPLE	2	9.91+iva
17	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	6	2.15+iva
18	7518936	SCR-M6X1X16 TR/TX-M	4	7.20+iva
19	7547674	NUT-M6-1.0, U-TYPE (2.5-3.8)	2	2.15+iva
20	7670116	CLIP, ROUTING, .472 B.D., HINGED	1	8.68+iva
21	8450040-62	FUEL LINE-46 CENTIMETERS	1	22.09+iva
22	5263210-329	BRKT-MNT CANISTER,E-COAT	1	43.05+iva
22	5263210-329	BRKT-MNT CANISTER,E-COAT	1	43.05+iva
23	7080761	CABLE-TIE,10-102MM,WEATH.-RES.	1	4.22+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
