R10TH50AG/AR

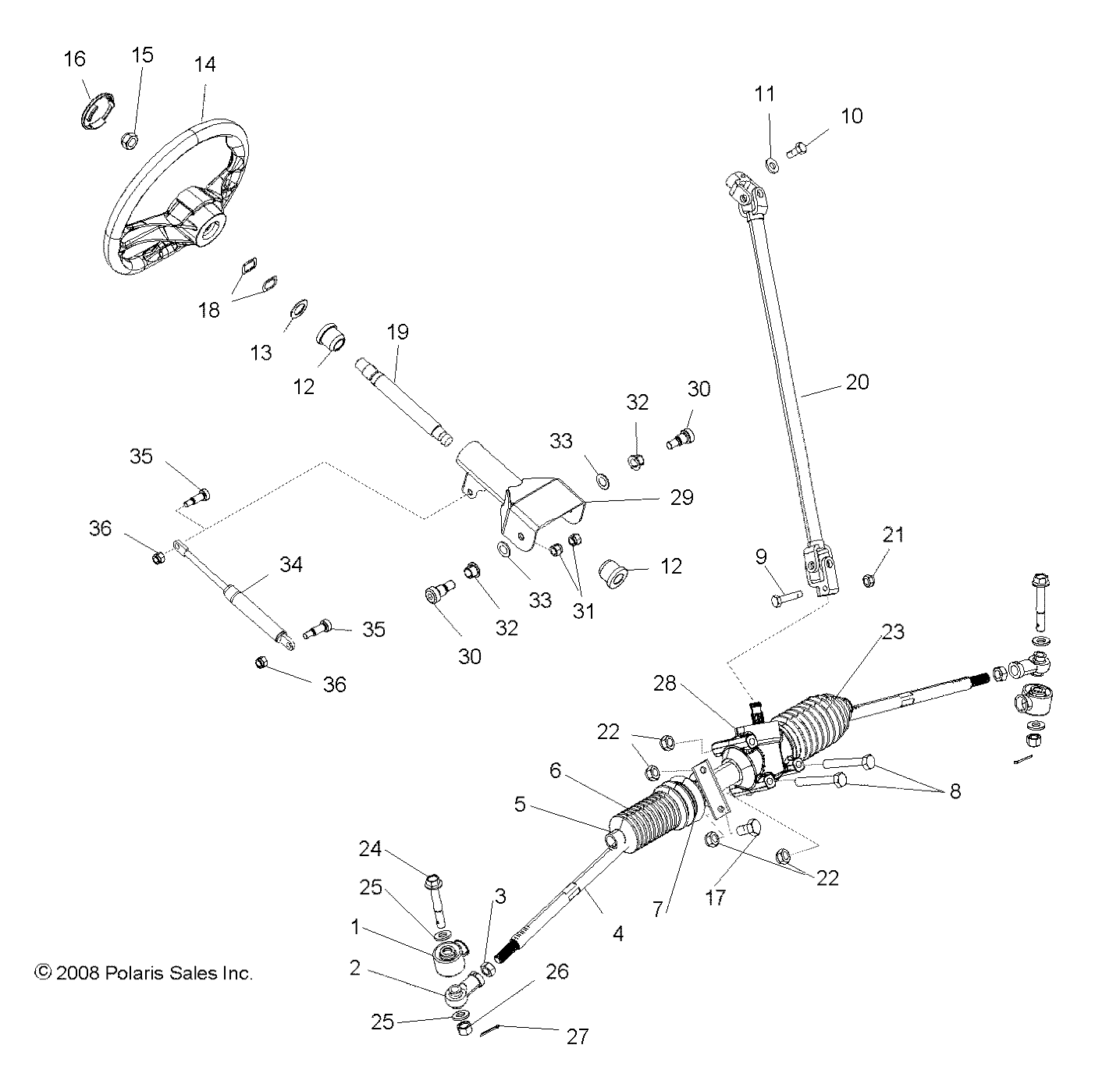

STEERING, STEERING ASM.
Responsive image
#ReferenciaDescriçãoQuant(*)PVPStock
1 ------- Boot, Seal, Rod End 2+ivaStock Consultar
2 7061054 Rod End [Incl. 1] Esta Referencia foi alterada para : 7061138 2AlteradaStock Consultar
3 7547028 Nut, Jam, LH 27.13+ivaStock Sim
4 ------- Tie Rod, Inner 2+ivaStock Consultar
5 7080978 Clamp, Boot, Small 27.13+ivaStock Consultar
6 5412013 Boot, Passenger, Side Rack 158.45+ivaStock Consultar
7 7080979 Clamp, Boot, Large 211.72+ivaStock Consultar
8 7518935 Bolt 37.13+ivaStock Consultar
9 7517827 Screw 18.58+ivaStock Consultar
10 7517924 Bolt 211.03+ivaStock Consultar
11 7552901 Washer 14.28+ivaStock Sim
12 5434106 Bushing, Shaft, Steering 212.27+ivaStock Sim
12 5434106 Bushing, Shaft, Steering 212.27+ivaStock Sim
13 7556301 Bushing 15.72+ivaStock Sim
14 1823622 Wheel, Steering 1186.45+ivaStock Consultar
15 7547188 Nut 17.35+ivaStock Consultar
16 5436536 Cap, Steering Wheel 148.47+ivaStock Consultar
17 7518702 Bolt 25.72+ivaStock Consultar
18 7556063 Washer, Wave 29.82+ivaStock Consultar
19 1823357 Shaft, Steering, Upper Consulte-nos podemos ter uma solução1ObsoletaStock Consultar
20 1823356 Shaft, Steering w/Joints, Lower 1252.97+ivaStock Consultar
21 7547385 Nut, Nylok 15.72+ivaStock Consultar
22 7547332 NUT- M8X1.25, FLG, NYLOC-OLIVE D 55.72+ivaStock Sim
22 7547332 NUT- M8X1.25, FLG, NYLOC-OLIVE D 55.72+ivaStock Sim
23 5412012 Boot, Driver Side, Rack 163.33+ivaStock Consultar
24 7517909 Bolt, Flange 211.72+ivaStock Sim
25 7556099 Washer 45.72+ivaStock Sim
25 7556099 Washer 45.72+ivaStock Sim
26 7547177 Nut 27.35+ivaStock Consultar
27 7661203 Pin, Cotter 24.28+ivaStock Sim
28 1823338 Asm., Gear Box, Steering [Incl. 2-7,23] 1727.11+ivaStock Consultar
29 1016403-521 Tilt, Steering Esta Referencia foi alterada para : 1016403-067 1AlteradaStock Consultar
30 7517607 Bolt, Shoulder 211.72+ivaStock Consultar
30 7517607 Bolt, Shoulder 211.72+ivaStock Consultar
31 7542451 Nut, Nylok 24.28+ivaStock Consultar
32 5431107 Bushing, Pedal Pivot 212.27+ivaStock Consultar
32 5431107 Bushing, Pedal Pivot 212.27+ivaStock Consultar
33 7555919 Washer 25.72+ivaStock Sim
33 7555919 Washer 25.72+ivaStock Sim
34 7043523 Asm., Shock Esta Referencia foi alterada para : 7043810 1AlteradaStock Consultar
35 7518786 Bolt, Shoulder 27.35+ivaStock Consultar
35 7518786 Bolt, Shoulder 27.35+ivaStock Consultar
36 7546703 NUT-6MM X 1 NYLOK-Z 24.28+ivaStock Sim
36 7546703 NUT-6MM X 1 NYLOK-Z 24.28+ivaStock Sim


• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
