R14TH90DG

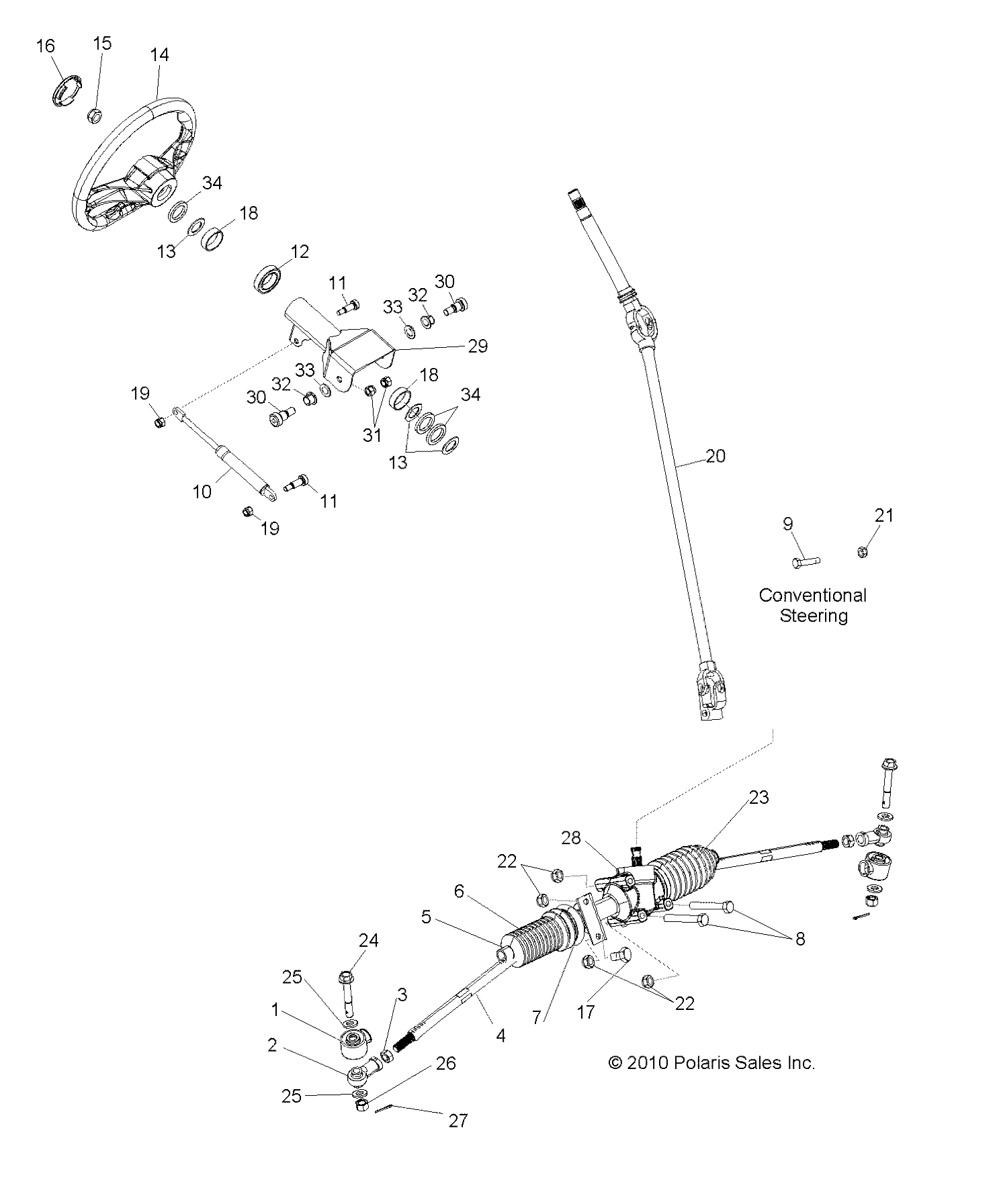

STEERING, STEERING ASM.
Responsive image
#ReferenciaDescriçãoQuant(*)PVPStock
1 5411920 BOOT, SEAL, ROD END Esta Referencia foi alterada para : 5412929 2AlteradaStock Consultar
2 7061054 ROD END [INCL. 1] Esta Referencia foi alterada para : 7061138 2AlteradaStock Consultar
3 7547028 NUT, JAM, LH 27.13+ivaStock Sim
4 ------- TIE ROD, INNER 2+ivaStock Consultar
5 7080978 CLAMP, BOOT, SMALL 27.13+ivaStock Consultar
6 5412013 BOOT, PASSENGER, SIDE RACK 158.45+ivaStock Consultar
7 7080979 CLAMP, BOOT, LARGE 211.72+ivaStock Consultar
8 7518935 BOLT 37.13+ivaStock Consultar
9 7517827 SCREW 18.58+ivaStock Consultar
10 7043810 ASM., SHOCK 1150.42+ivaStock Consultar
11 7518786 BOLT, SHOULDER 27.35+ivaStock Consultar
11 7518786 BOLT, SHOULDER 27.35+ivaStock Consultar
12 3514686 BEARING, STEERING 212.78+ivaStock Consultar
13 7556483 WASHER 35.72+ivaStock Consultar
13 7556483 WASHER 35.72+ivaStock Consultar
14 1823622 WHEEL, STEERING 1186.45+ivaStock Consultar
15 7547188 NUT 17.35+ivaStock Consultar
16 5438865 CAP, STEERING WHEEL 18.37+ivaStock Consultar
17 7518702 BOLT 25.72+ivaStock Consultar
18 5252796 SPACER, STEERING SHAFT 27.13+ivaStock Consultar
18 5252796 SPACER, STEERING SHAFT 27.13+ivaStock Consultar
19 7546703 NUT-6MM X 1 NYLOK-Z 24.28+ivaStock Sim
19 7546703 NUT-6MM X 1 NYLOK-Z 24.28+ivaStock Sim
20 1823669 SHAFT, STEERING, UPPER/LOWER 1225.62+ivaStock Consultar
21 7547385 NUT, NYLOK 15.72+ivaStock Consultar
22 7547332 NUT- M8X1.25, FLG, NYLOC-OLIVE D 55.72+ivaStock Sim
22 7547332 NUT- M8X1.25, FLG, NYLOC-OLIVE D 55.72+ivaStock Sim
23 5412012 BOOT, DRIVER SIDE, RACK 163.33+ivaStock Consultar
24 7517909 BOLT, FLANGE 211.72+ivaStock Sim
25 7556099 WASHER 45.72+ivaStock Sim
25 7556099 WASHER 45.72+ivaStock Sim
26 7547177 NUT 27.35+ivaStock Consultar
27 7661203 PIN, COTTER 24.28+ivaStock Sim
28 1823795 ASM., GEAR BOX, STEERING [INCL. 1-7,23] 1727.11+ivaStock Consultar
29 1017722-521 ASM., PIVOT TUBE, BLACK ENGINE WRINKLE 173.07+ivaStock Consultar
30 7517607 BOLT, SHOULDER 211.72+ivaStock Consultar
30 7517607 BOLT, SHOULDER 211.72+ivaStock Consultar
31 7542451 NUT, NYLOK 24.28+ivaStock Consultar
32 5431107 BUSHING, PEDAL PIVOT 212.27+ivaStock Consultar
32 5431107 BUSHING, PEDAL PIVOT 212.27+ivaStock Consultar
33 7555919 WASHER 25.72+ivaStock Sim
33 7555919 WASHER 25.72+ivaStock Sim
34 7556482 WASHER 35.72+ivaStock Consultar
34 7556482 WASHER 35.72+ivaStock Consultar


• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
