R18RNA57B1/B9/EBV

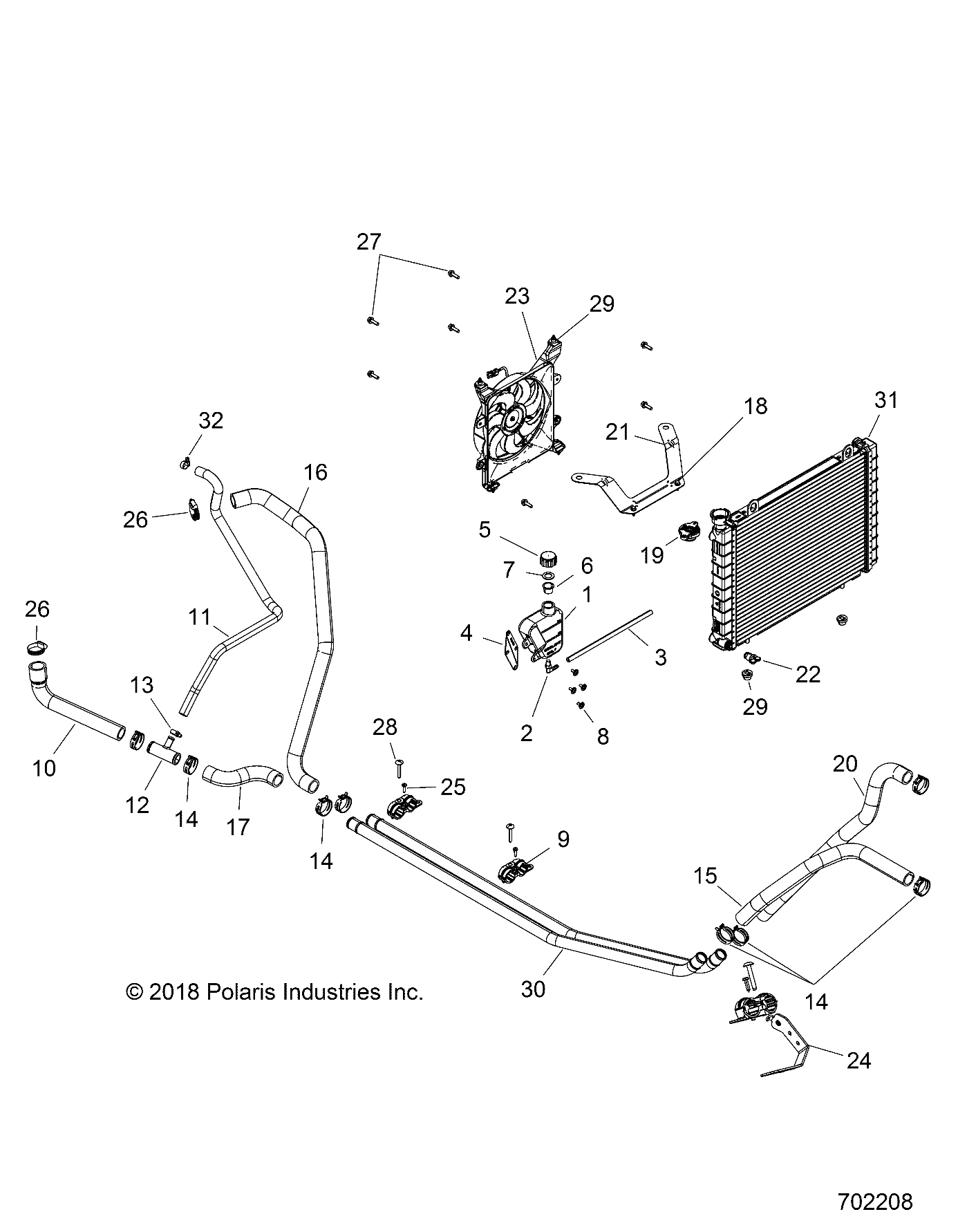

ENGINE, COOLING SYSTEM

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	5436936	TANK, SURGE	1	129.85+iva
2	7052065	FITTING, 90 DEG	1	11.16+iva
3	8450003-1525	LINE, FUEL	AR	115.42+iva
4	5254763	BRACKET, SURGE TANK	1	7.43+iva
5	5430743	CAP, OVER FLOW BOTTLE, DRILLED	1	10.90+iva
6	5433774	PLUG, CAP	1	10.90+iva
7	5810279	GASKET, OVER FLOW CAP	1	4.31+iva
8	7512084	SCREW	4	2.15+iva
9	5451221	BRACKET, COOLANT TUBE	3	12.40+iva
10	5414162	HOSE, BYPASS, 1 INCH, FORMED	1	55.26+iva
11	5414590	HOSE, BYPASS, 1/2 INCH, FORMED	1	63.16+iva
12	7052530	CONNECTOR, TEE	1	8.68+iva
13	7080474	CLAMP, HOSE	2	11.16+iva
14	7080843	CLAMP, SPRINGBAND, BROWN	8	7.20+iva
14	7080843	CLAMP, SPRINGBAND, BROWN	8	7.20+iva
14	7080843	CLAMP, SPRINGBAND, BROWN	8	7.20+iva
15	5416387	HOSE, LOWER, RADIATOR	1	63.16+iva
16	5415053	HOSE, ENGINE OUTLET, REAR	1	78.95+iva
17	5415054	HOSE, LOWER, ENGINE, SHORT	1	47.35+iva
18	7518529	SCREW [INCL 19-20]	3	2.15+iva
19	1240899	CAP, PRESSURE	1	71.05+iva
20	5416386	HOSE, UPPER, RADIATOR	1	78.95+iva
21	5260846-458	BRKT-RADIATOR MOUNT,BLACK	1	37.67+iva
22	7052617	VALVE-PLASTIC RAD/COOLER DRAIN	1	28.71+iva
23	2413196	FAN-ASSEMBLY,SHROUD	1	421.11+iva
24	5265091-329	BRKT-COOLANT TUBE MNT,BLK	1	16.14+iva
25	7512026	SCREW	3	2.15+iva
25	7512026	SCREW	3	2.15+iva
26	7081192	CLAMP, HOSE	2	12.40+iva
27	7516822	SCREW	4	4.31+iva
28	7519001	SCREW	3	7.20+iva
29	7052028	GROMMET-FLANGED	4	9.91+iva
29	7052028	GROMMET-FLANGED	4	9.91+iva
30	5141421	TUBE-COOLANT,1",CREW	2	86.57+iva
31	1240955	ASM-RADIATOR	1	689.42+iva
31	1240956	ASM-RADIATOR,CORE	1	676.28+iva
32	7080474	CLAMP-HOSE,.875-SS	1	11.16+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
