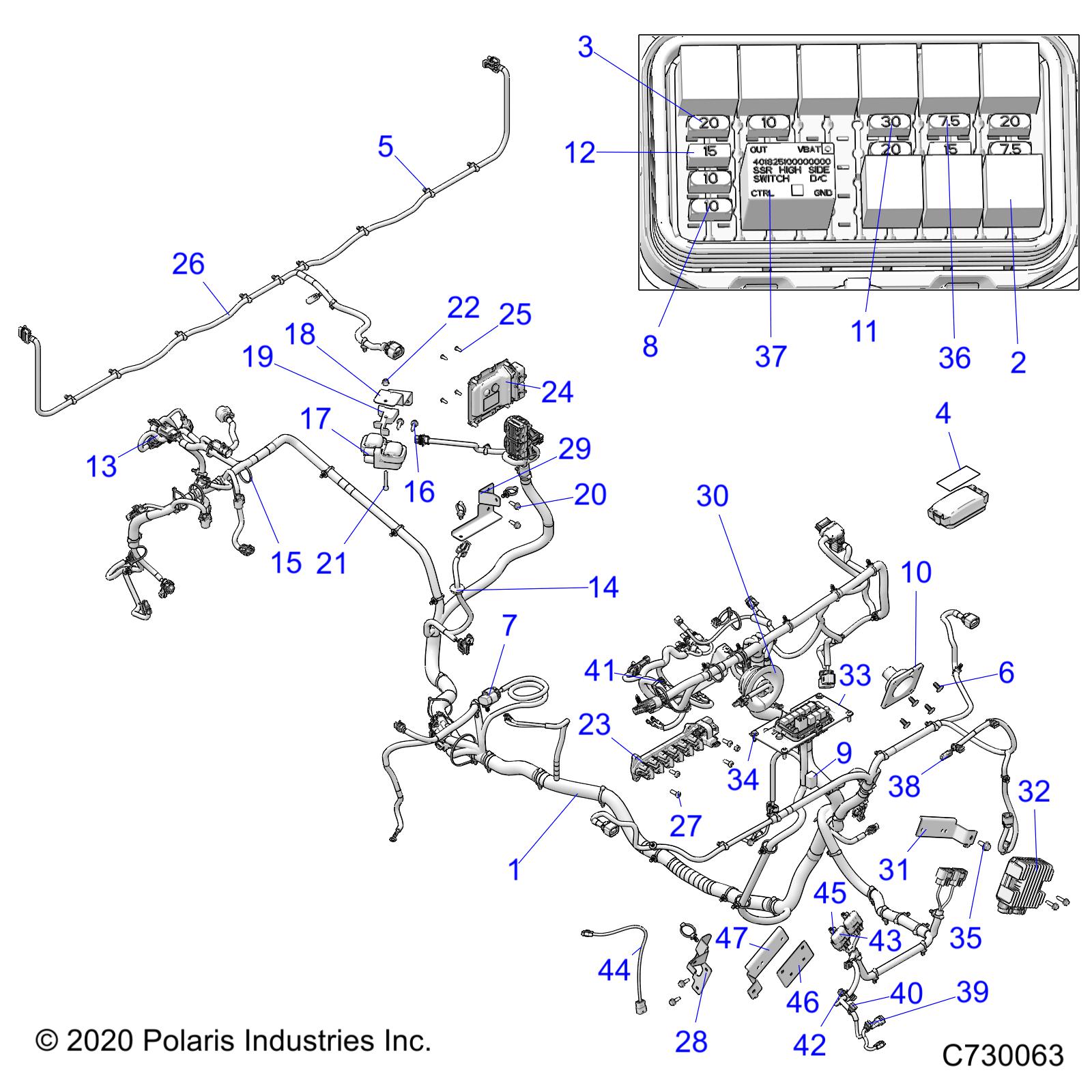

R21RRB99AZ/BZ

ELECTRICAL, WIRE HARNESS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2415394	HARN-CHASSIS,BC [INCL. 2-14,36-42]	1	1963.21+iva
2	4016819	RELAY - SPST, 12V, 20A, EPXY, HFA	9	55.26+iva
3	2434017	FUSE,PARK,20 AMP,(10) Esta Referencia foi alterada para : 4012811	3	Alterada
4	7300225	DECAL-RELAY/FUSE BLOCK,LE,RC	1	0.02+iva
5	7081496	CLIP-ROUTING	AR	7.43+iva
5	7081496	CLIP-ROUTING	AR	7.43+iva
6	7670090	CLIP,PLASTIC DART,NYLON(10)	4	2.15+iva
7	4012170	COVER - DIAGNOSTIC, W/ CLIP	1	16.36+iva
8	2434016	FUSE, IGNITION, 10 AMP	3	10.56+iva
9	2410881	BREAKER, CIRCUIT, 10 AMP, SEALED	1	122.63+iva
10	5814560	GROMMET - 65MM, W/FLANGE, BLK	1	16.14+iva
10	5814560	GROMMET - 65MM, W/FLANGE, BLK	1	16.14+iva
10	5814560	GROMMET - 65MM, W/FLANGE, BLK	1	16.14+iva
11	2434015	FUSE,MAIN,30 AMP,(10)	1	14.53+iva
12	2410280	Fuse, Mini Blade, 15 Amp. Esta Referencia foi alterada para : 4010859	3	Alterada
13	4012260	COVER, HAZARD FLASHER FUSE	1	17.36+iva
14	5415308	GROMMET - USB, 3 MM, 22 MM DIA	1	7.20+iva
15	7080138	PANDUIT STRAP	AR	3.12+iva
15	7080138	PANDUIT STRAP	AR	3.12+iva
16	7520715	SCR-TFHFL-M6X1.0X25,ZY3	8	7.20+iva
17	4010425	COIL, EFI Esta Referencia foi alterada para : 2876049	1	Alterada
18	5263891	BRKT-COIL MOUNT	1	12.91+iva
19	5436577	SPACER, COIL MOUNT	1	7.20+iva
20	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	8	2.15+iva
20	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	8	2.15+iva
21	7518780	SCR-M6X1.0X40,HX/SOC/CP-B	1	7.20+iva
22	7547274	NUT, M6 FLANGE, NYLOC	2	2.15+iva
23	4016007	BLOCK-TERMINAL,3 POST,TALL [INCL. FUSE PLUG AND COVER]	1	68.01+iva
24	4014125	ECM-HARD,ME17,2CYL,250K	1	886.40+iva
25	7519091	SCR-#10X1/2-HI/LO-PN-T25, TRX-M	4	5.76+iva
26	2414296	HARNESS,BOX,RANGER,RC	1	108.21+iva
27	7519731	SCR-TXPH-#14 X .75 HI-LO RIE	8	7.20+iva
28	5264313-329	BRKT-ROUTING,BLK [TO 9/12/2020]	1	12.40+iva
28	5268050-329	BRKT-ROUTING,BLK [FROM 9/12/2020]	1	32.29+iva
29	5264314	BRKT-HARNESS ROUTING	1	15.06+iva
30	5417082	GROMMET-HOOD LINER,SPLIT	1	11.16+iva
30	5417082	GROMMET-HOOD LINER,SPLIT	1	11.16+iva
31	5263643	BRKT-MOUNT,REG	1	43.05+iva
32	4016868	REGULATOR-3PH,50A,SERIES,HISPD	1	207.10+iva
33	5264801-329	BRKT-FUSE BLOCK,MNT,BLK	1	18.29+iva
34	7661855	RIVET-TUFLOK,.315-.325X.787	2	2.15+iva
35	7518555	SCR-TFHFL-M8X1.25X20 CHS ZOD	4	4.31+iva
36	4011068	FUSE - 7.5, MINI BLADE (BROWN)	2	20.51+iva
37	4018251	RELAY - SSR 10A	2	93.78+iva
38	5438230	CAP - VINYL, 125X375, BLACK	1	10.90+iva
39	7081808	STRAP - CABLE TIE W/ EDGE CLIP	2	10.90+iva
40	7081890	CLIP, EDGE, HARNESS	3	13.99+iva
41	7082404	CLIP-EDGE, 3-6MM THICKNESS	1	12.91+iva
42	7082428	CLIP-EDGE,1-3MM THICKNESS	2	7.43+iva
43	5456378	CAP-REGULATOR,DC Â	2	10.90+iva
44	2415993	HARN-WINCH,CONT,JMPR Â	1	63.16+iva
45	4018311	CLIP-CONNECTOR,GREY Â	2	5.76+iva
46	5268319-329	BRKT-REGULATOR,MTNG,CAP,BLK Â	1	12.40+iva
47	5267612	BRKT-MOUNT,REG Â	1	17.23+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
