R21RRF99AK

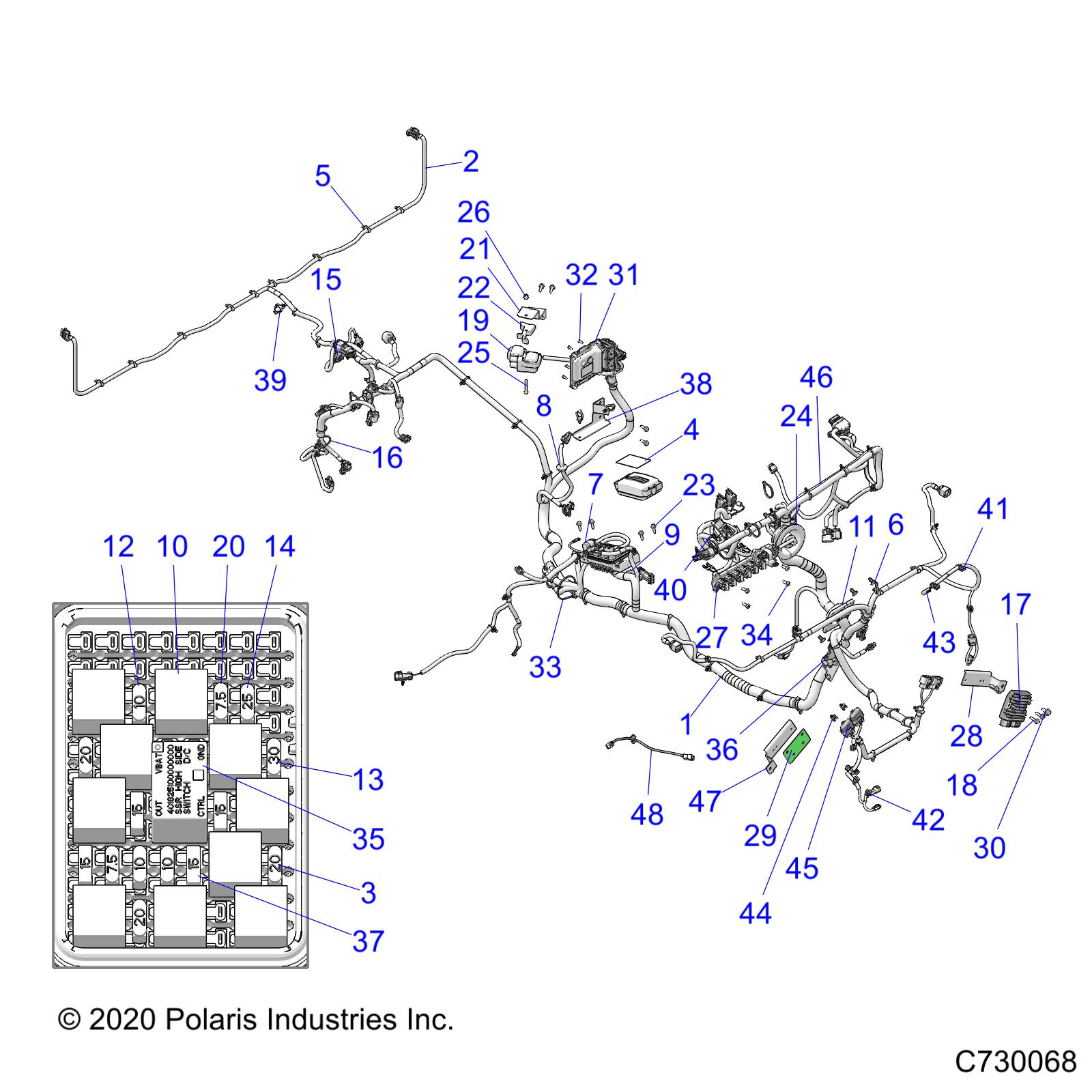

ELECTRICAL, WIRE HARNESS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2415390	HARN-CHASSIS,FO,RGR [INCL. 3,4,6-15,20,35,37,40-43]	1	1612.73+iva
2	2414296	HARNESS,BOX,RANGER,RC	1	100.02+iva
3	2434017	FUSE,PARK,20 AMP,(10) Esta Referencia foi alterada para : 4012811	3	Alterada
4	7300223	DECAL, FUSE BOX	1	+iva
5	7081496	CLIP-ROUTING	AR	7.13+iva
6	7670090	CLIP,PLASTIC DART,NYLON(10)	4	5.72+iva
7	4012170	COVER - DIAGNOSTIC, W/ CLIP	1	14.40+iva
8	5415308	GROMMET - USB, 3 MM, 22 MM DIA	1	5.72+iva
9	2410881	BREAKER, CIRCUIT, 10 AMP, SEALED	1	114.32+iva
10	4016819	RELAY - SPST, 12V, 20A, EPXY, HFA	10	46.92+iva
11	5814560	GROMMET - 65MM, W/FLANGE, BLK	1	15.98+iva
11	5814560	GROMMET - 65MM, W/FLANGE, BLK	1	15.98+iva
12	2434016	FUSE, IGNITION, 10 AMP	3	8.37+iva
13	2434015	FUSE,MAIN,30 AMP,(10)	1	12.60+iva
14	4011653	Fuse, 25 AMP, Mini Blade	1	14.40+iva
15	4012260	COVER, HAZARD FLASHER FUSE	1	17.20+iva
16	7080138	PANDUIT STRAP	1	3.12+iva
17	4016868	REGULATOR-3PH,50A,SERIES,HISPD	1	184.58+iva
18	7520715	SCR-TFHFL-M6X1.0X25,ZY3	7	5.72+iva
19	4010425	COIL, EFI Esta Referencia foi alterada para : 2876049	1	Alterada
20	4011068	FUSE - 7.5, MINI BLADE (BROWN)	1	18.75+iva
21	5263891	BRKT-COIL MOUNT	1	11.72+iva
22	5436577	SPACER, COIL MOUNT	1	5.72+iva
23	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	11	5.72+iva
24	5417082	GROMMET-HOOD LINER,SPLIT	1	9.82+iva
25	7518780	SCR-M6X1.0X40,HX/SOC/CP-B	1	5.72+iva
26	7547274	NUT, M6 FLANGE, NYLOC	2	5.72+iva
27	4016007	BLOCK-TERMINAL,3 POST,TALL [INCL. FUSE PLUG AND COVER]	1	67.37+iva
27	5454284	COVER,TB,JCASE	1	39.08+iva
27	4013891	FUSE, CARTRIDGE, 40A	1	46.92+iva
27	5454283	PLUG,ACCY TB	6	62.55+iva
28	5263643	BRKT-MOUNT,REG	1	42.65+iva
29	5268319-329	BRKT-REGULATOR,MTNG,CAP,BLK	1	11.03+iva
30	7518555	SCR-TFHFL-M8X1.25X20 CHS ZOD	2	7.13+iva
31	4014125	ECM-HARD,ME17,2CYL,250K	1	877.88+iva
32	7519091	SCR-#10X1/2-HI/LO-PN-T25, TRX-M	4	4.28+iva
33	7080761	CABLE-TIE,10-102MM,WEATH.-RES.	1	4.17+iva
35	4018251	RELAY - SSR 10A	1	78.58+iva
36	5268050-329	BRKT-ROUTING,BLK	1	26.65+iva
37	2410280	Fuse, Mini Blade, 15 Amp. Esta Referencia foi alterada para : 4010859	4	Alterada
38	5264314	BRKT-HARNESS ROUTING	1	13.85+iva
39	7082403	CLIP-EDGE, 1-3mm THICKNESS	2	7.13+iva
40	7082404	CLIP-EDGE, 3-6MM THICKNESS	1	11.72+iva
41	7081890	CLIP, EDGE, HARNESS	3	12.78+iva
42	7081808	STRAP - CABLE TIE W/ EDGE CLIP	2	10.78+iva
43	5438230	CAP - VINYL, 125X375, BLACK	1	10.47+iva
44	4018311	CLIP-CONNECTOR,GREY Â	2	4.28+iva
45	5456378	CAP-REGULATOR,DC Â	2	10.47+iva
46	2415055	JUMPER-WINCH,SWITCH,SEALED Â	1	70.37+iva
47	5267612	BRKT-MOUNT,REG Â	1	17.05+iva
48	-------	HARN-WINCH,CONT,JMPR Â	1	+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
