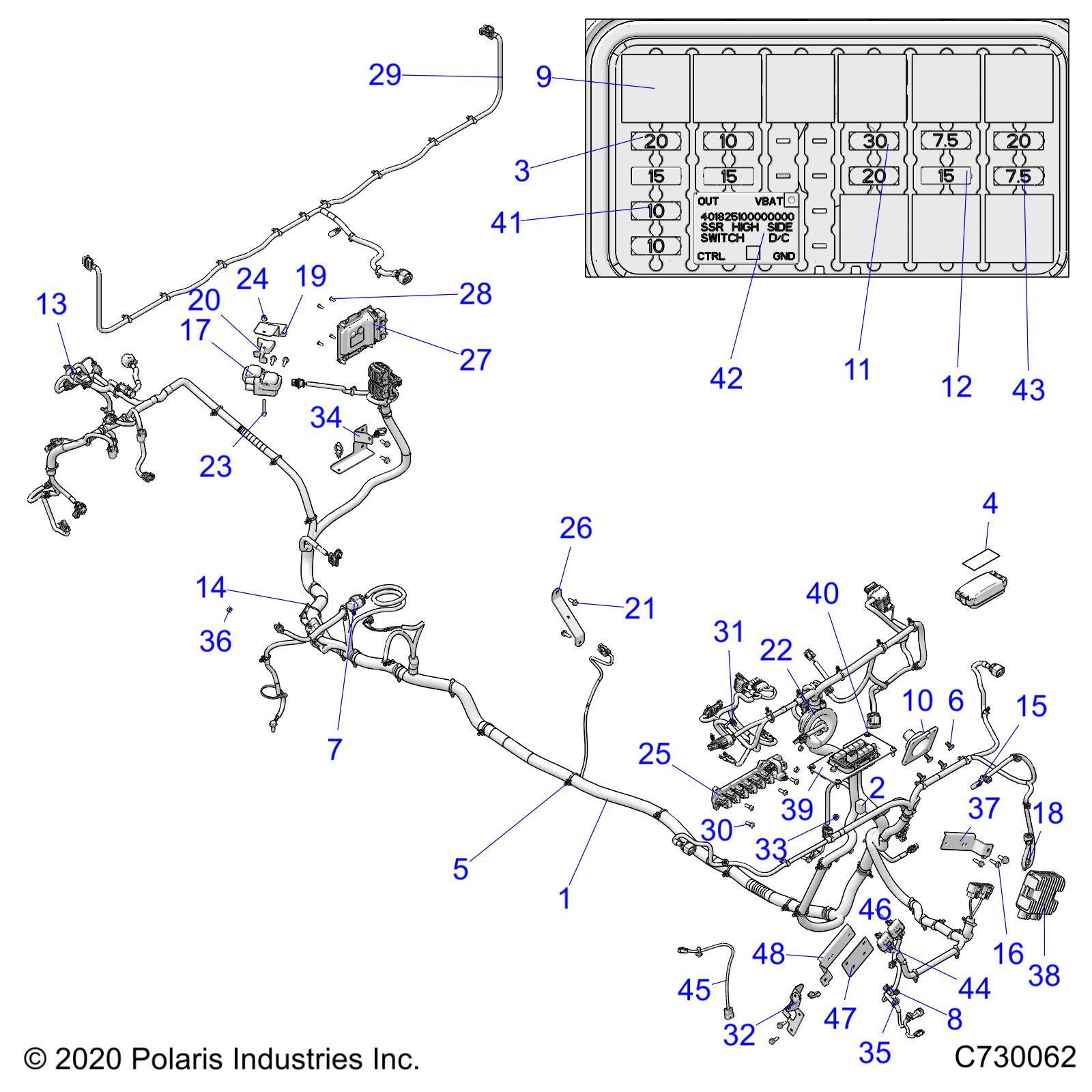

R21RSM99AG

ELECTRICAL, WIRE HARNESS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2415395	HARN-CHASSIS,CREW,EPS,BC [INCL 2-13, 15, 18, 31, 35, 41-43]	1	2250.02+iva
2	2410881	BREAKER, CIRCUIT, 10 AMP, SEALED	1	114.32+iva
3	2434017	FUSE,PARK,20 AMP,(10) Esta Referencia foi alterada para : 4012811	2	Alterada
4	7300225	DECAL-RELAY/FUSE BLOCK,LE,RC	1	+iva
5	7081496	CLIP-ROUTING	AR	7.13+iva
6	7670090	CLIP,PLASTIC DART,NYLON(10)	4	5.72+iva
7	4012170	COVER - DIAGNOSTIC, W/ CLIP	1	14.40+iva
8	7082428	CLIP-EDGE,1-3MM THICKNESS	2	7.13+iva
9	4016819	RELAY - SPST, 12V, 20A, EPXY, HFA	5	46.92+iva
10	5814560	GROMMET - 65MM, W/FLANGE, BLK	1	15.98+iva
11	2434015	FUSE,MAIN,30 AMP,(10)	2	12.60+iva
12	2410280	Fuse, Mini Blade, 15 Amp. Esta Referencia foi alterada para : 4010859	2	Alterada
13	4012260	COVER, HAZARD FLASHER FUSE	1	17.20+iva
14	7080138	PANDUIT STRAP	AR	3.12+iva
15	5438230	CAP - VINYL, 125X375, BLACK	1	10.47+iva
16	7520715	SCR-TFHFL-M6X1.0X25,ZY3	5	5.72+iva
17	4010425	COIL, EFI Esta Referencia foi alterada para : 2876049	1	Alterada
18	7081808	STRAP - CABLE TIE W/ EDGE CLIP	2	10.78+iva
19	5263891	BRKT-COIL MOUNT	1	11.72+iva
20	5436577	SPACER, COIL MOUNT	1	5.72+iva
21	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	8	5.72+iva
22	5417082	GROMMET-HOOD LINER,SPLIT	1	9.82+iva
23	7518780	SCR-M6X1.0X40,HX/SOC/CP-B	1	5.72+iva
24	7547274	NUT, M6 FLANGE, NYLOC	2	5.72+iva
25	5454284	COVER,TB,JCASE	1	39.08+iva
25	4013891	FUSE, CARTRIDGE, 40A	1	46.92+iva
25	4016007	BLOCK-TERMINAL,3 POST,TALL [INCL. FUSE PLUG AND COVER]	1	67.37+iva
25	5454283	PLUG,ACCY TB	6	62.55+iva
26	5265908-458	BRKT-WIRE GUIDE,BLK	1	7.35+iva
27	4014125	ECM-HARD,ME17,2CYL,250K	1	877.88+iva
28	7519091	SCR-#10X1/2-HI/LO-PN-T25, TRX-M	4	4.28+iva
29	2414296	HARNESS,BOX,RANGER,RC	1	100.02+iva
30	7519731	SCR-TXPH-#14 X .75 HI-LO RIE	4	5.72+iva
31	7082404	CLIP-EDGE, 3-6MM THICKNESS	1	11.72+iva
32	5264313-329	BRKT-ROUTING,BLK [TO 9/12/2020]	1	11.03+iva
32	5268050-329	BRKT-ROUTING,BLK [FROM 9/12/2020]	1	26.65+iva
33	7547332	NUT- M8X1.25, FLG, NYLOC-OLIVE D	2	5.72+iva
34	5264314	BRKT-HARNESS ROUTING	1	13.85+iva
35	7081890	CLIP, EDGE, HARNESS	3	12.78+iva
36	7547317	NUT-M8X1.25,HXFLG,NYLON INS	1	5.72+iva
37	5263643	BRKT-MOUNT,REG	1	42.65+iva
38	4016868	REGULATOR-3PH,50A,SERIES,HISPD	1	184.58+iva
39	5264801-329	BRKT-FUSE BLOCK,MNT,BLK	1	17.05+iva
40	7661855	RIVET-TUFLOK,.315-.325X.787	2	5.72+iva
41	2434016	FUSE, IGNITION, 10 AMP	1	8.37+iva
42	4018251	RELAY - SSR 10A	1	78.58+iva
43	4011068	FUSE - 7.5, MINI BLADE (BROWN)	2	18.75+iva
44	5456378	CAP-REGULATOR,DC Â	2	10.47+iva
45	2415993	HARN-WINCH,CONT,JMPR Â	1	54.73+iva
46	4018311	CLIP-CONNECTOR,GREY Â	2	4.28+iva
47	5268319-329	BRKT-REGULATOR,MTNG,CAP,BLK Â	1	11.03+iva
48	5267612	BRKT-MOUNT,REG Â	1	17.05+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
