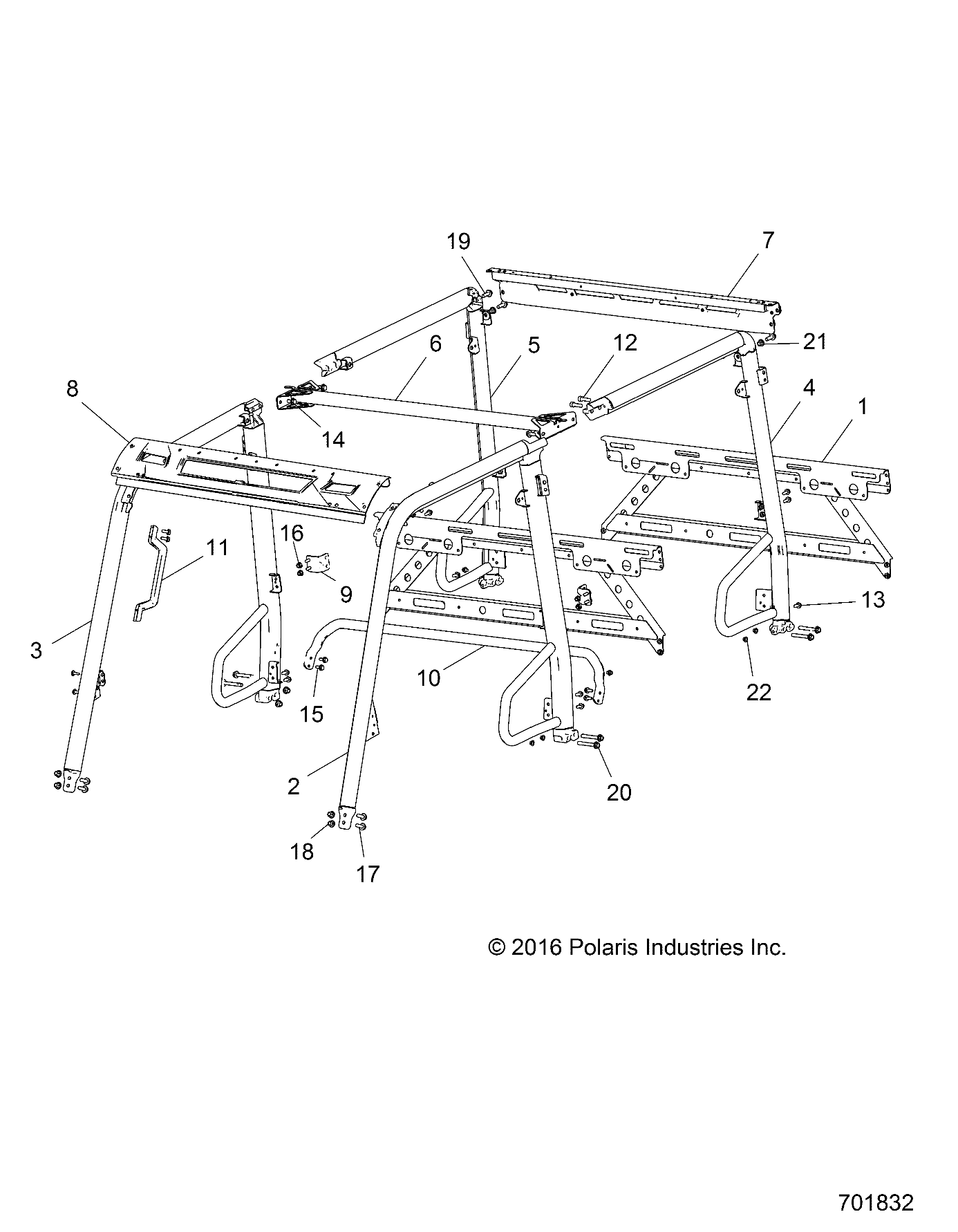

R21M4A57B1/B9/EBX

CHASSIS, CAB FRAME

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	1022575-458	CAB, FRAME, LOWER, REAR, MATTE BLACK	2	492.28+iva
2	1022612-458	WELD-CABFRAME,FRT,CREW,LH,M.BK	1	649.53+iva
3	1022611-458	WELD-CABFRAME,FRT,CREW,RH,M.BK	1	649.53+iva
4	1022554-458	WELD-CABFRAME,RR,CREW,LH,M.BLK	1	540.13+iva
5	1022555-458	WELD-CABFRAME,RR,CREW,RH,M.BLK	1	540.13+iva
6	1020263-458	CAB, FRAME, CENTER, MATTE BLACK	1	314.50+iva
7	1021194-458	FRAME, CAB, PLATE, UPPER, REAR, MATTE BLACK	1	211.95+iva
8	5258471-458	PLATE, WINDSHIELD MOUNT, MATTE BLACK	1	212.98+iva
9	5259232	BRACKET, BUCKLE	2	11.72+iva
10	5338235-458	TUBE, CAB FRAME, HANDLE, MATTE BLACK	1	114.32+iva
11	5439299-070	HANDLE, GRAB, ROPS, BLACK	1	31.98+iva
12	7517367	Bolt, Carriage	4	13.85+iva
13	7518450	BOLT-M8X1.25X20,HXHDFLG,W/PTCH	16	7.13+iva
14	7518460	SCR-HXFL-M10X1.5X20 8.8 Z NYL	4	5.72+iva
15	7518555	SCR-TFHFL-M8X1.25X20 CHS ZOD	6	7.13+iva
16	7547332	NUT- M8X1.25, FLG, NYLOC-OLIVE D	4	5.72+iva
17	7519059	SCR-HXFL-M10X1.25X30 8.8 ZOD	4	7.35+iva
18	7547333	NUT-M10X1.25, FLG, NYLOC-OLIVE D	4	5.72+iva
19	7520213	SCR-HXFL-M10X1.5X30 8.8 ZY3 NY	4	11.72+iva
20	7518291	SCR-M10X1.50X70 HX/FL-Y/D 10.9	8	5.13+iva
21	7547313	NUT-M10X1.5,HXFLG, NYLON INS	6	5.72+iva
22	7547841	NUT-HXFL-M10X1.5 10 ZY3 SPC	8	5.72+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
