R22RRY99A9/AC/AM/AS/B9/BC/BM/BS/1A9/AC/AM/AS/B9/BC/BM/BS

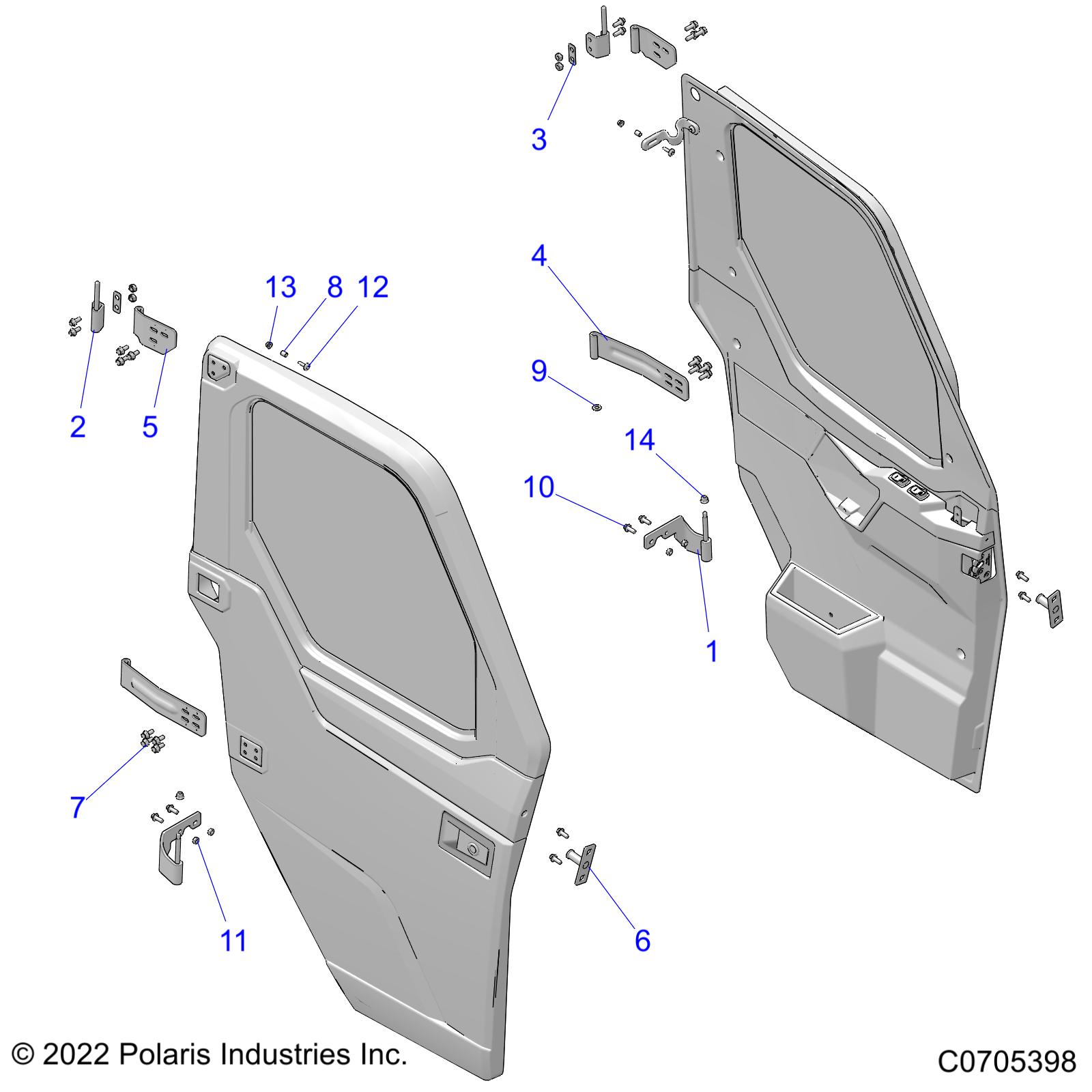

BODY, DOOR, FULL, MOUNTING
| # | Referencia | Descrição | Quant(*) | PVP | Stock |
|---|---|---|---|---|---|
| 1 | ------- | WELD-HINGE,LOWER,LH,BLK | 1 | +iva |  |
| 1 | 2207709 | K-HRDWR SVC HINGE CAB ZS [INCL. 1,2,9] | 1 | 151.87+iva | |
| 1 | ------- | WELD-HINGE,LOWER,RH,BLK | 1 | +iva | |
| 2 | ------- | WELD-HINGE,UPPER,RH | 1 | +iva | |
| 2 | ------- | WELD-HINGE,UPPER,LH | 1 | +iva | |
| 3 | 5256140-458 | PLATE, HINGE, BLACK | 2 | 18.29+iva | |
| 4 | 2207708 | K-HRDWR SVC HINGE, DOOR, ZS [INCL. 4,5,7 (QTY 8)] | 1 | 144.29+iva | |
| 4 | ------- | BRKT-HINGE,DOOR LWR,BLK | 2 | +iva | |
| 5 | ------- | BRKT-HINGE,DOOR UPPER,LH.BLK | 1 | +iva | |
| 5 | ------- | BRKT-HINGE,DOOR UPPER,RH,BLK | 1 | +iva | |
| 6 | 2207717 | K- HRDWR SVC STRIKER, ZS | 2 | 55.26+iva | |
| 7 | 7521168 | SCREW-HXFL-M8X1.25X20 8.8 ZPB | 14 | 5.76+iva | |
| 8 | 5139193 | Spacer, Aluminum M6 Door Retainer | 2 | 17.23+iva | |
| 9 | 5439712 | WASHER-0.62X0.330 X .060 FL-Y | 4 | 2.87+iva | |
| 10 | 7517838 | SCR-HEXFLGHD,M8 X 20,0600086(10) | 12 | 7.20+iva | |
| 11 | 7547076 | NUT-HEX-M8X1.25 8 ZPB. | 4 | 4.31+iva | |
| 12 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 2 | 7.20+iva | |
| 13 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 2 | 7.20+iva |  |
| 14 | 7547454 | NUT-M8X1.25,FLG,NYLOC-OLIVE D | 2 | 2.87+iva | |
- • (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
