R22CDA57A1

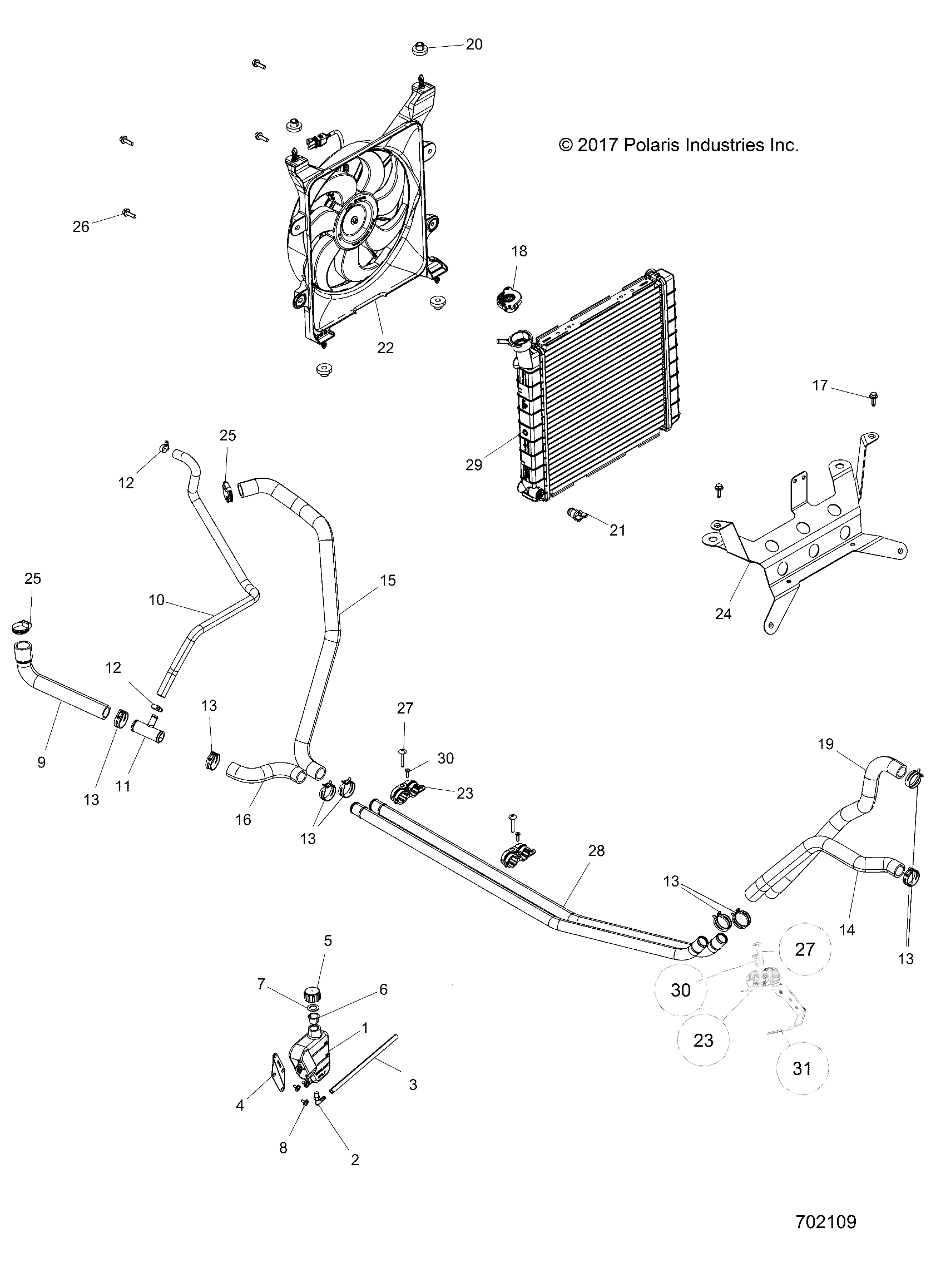

ENGINE, COOLING SYSTEM

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	5436936	TANK, SURGE	1	129.85+iva
2	7052065	FITTING-1/8-27, BARBED, 90 DEG	1	11.16+iva
3	8450003-55	Line, Fuel Esta Referencia foi alterada para : 8450003-1525	AR	Alterada
4	5261227	BRACKET, SURGE TANK	1	5.76+iva
5	5430743	CAP, OVER FLOW BOTTLE, DRILLED	1	10.90+iva
6	5433774	CAP,PLUG9X(GRN),FLEX TEMP(10)	1	10.90+iva
7	5810279	GASKET, OVER FLOW CAP	1	4.31+iva
8	7512084	SCR-10-24X1/2, PHTXTRIRD, SEMS-Y	4	2.15+iva
9	5414162	HOSE, BYPASS, 1 INCH, FORMED	1	55.26+iva
10	5414590	HOSE, BYPASS, 1/2 INCH, FORMED	1	63.16+iva
11	7052530	CONNECTOR-TEE,1X1X0.5	1	8.68+iva
12	7080474	CLAMP, HOSE, SPRING, .875 INCH	2	11.16+iva
12	7080474	CLAMP, HOSE, SPRING, .875 INCH	2	11.16+iva
13	7080843	SPRINGBAND-CLAMP 32/12,BROWN	8	7.20+iva
13	7080843	SPRINGBAND-CLAMP 32/12,BROWN	8	7.20+iva
13	7080843	SPRINGBAND-CLAMP 32/12,BROWN	8	7.20+iva
13	7080843	SPRINGBAND-CLAMP 32/12,BROWN	8	7.20+iva
13	7080843	SPRINGBAND-CLAMP 32/12,BROWN	8	7.20+iva
14	5416387	HOSE, LOWER, RADIATOR	1	63.16+iva
15	5416553	HOSE, ENGINE OUTLET, REAR	1	78.95+iva
16	5415054	HOSE, LOWER, ENGINE, SHORT	1	47.35+iva
17	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	3	2.15+iva
18	1240899	CAP, PRESSURE	1	71.05+iva
19	5416386	HOSE, UPPER, RADIATOR	1	78.95+iva
20	7052028	GROMMET-FLANGED,.36X.56X1.06	4	9.91+iva
21	7052617	VALVE, PLASTIC RADIATOR/COOLER DRAIN	1	28.71+iva
22	2413196	FAN-ASSEMBLY,SHROUD	1	421.11+iva
23	5451221	BRACKET, COOLANT TUBE	3	12.40+iva
23	5451221	BRACKET, COOLANT TUBE	3	12.40+iva
24	5261226	BRKT-RAD MNT,3P,FS,GALV	1	54.10+iva
25	7081192	CLAMP, HOSE (WORM DR) 25-40MM	2	12.40+iva
25	7081192	CLAMP, HOSE (WORM DR) 25-40MM	2	12.40+iva
26	7516822	SCREW-M6X1.0X20-HX/FL-Y/D	4	4.31+iva
27	7519001	SCR-TXTH-M6X1.0X50, 8.8, ZPB	7	7.20+iva
27	7519001	SCR-TXTH-M6X1.0X50, 8.8, ZPB	7	7.20+iva
28	5141423	TUBE-COOLANT,1",FS,CREW	2	78.95+iva
29	1240955	ASM., RADIATOR, CORE [INCL. 18,21]	1	689.42+iva
30	7512026	SCREW-#10X3/4-HI/LO-PN-T25,TRX-M	3	2.15+iva
30	7512026	SCREW-#10X3/4-HI/LO-PN-T25,TRX-M	3	2.15+iva
31	5265091-329	BRKT-COOLANT TUBE MNT,BLK	1	16.14+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
