R22CDA57A1

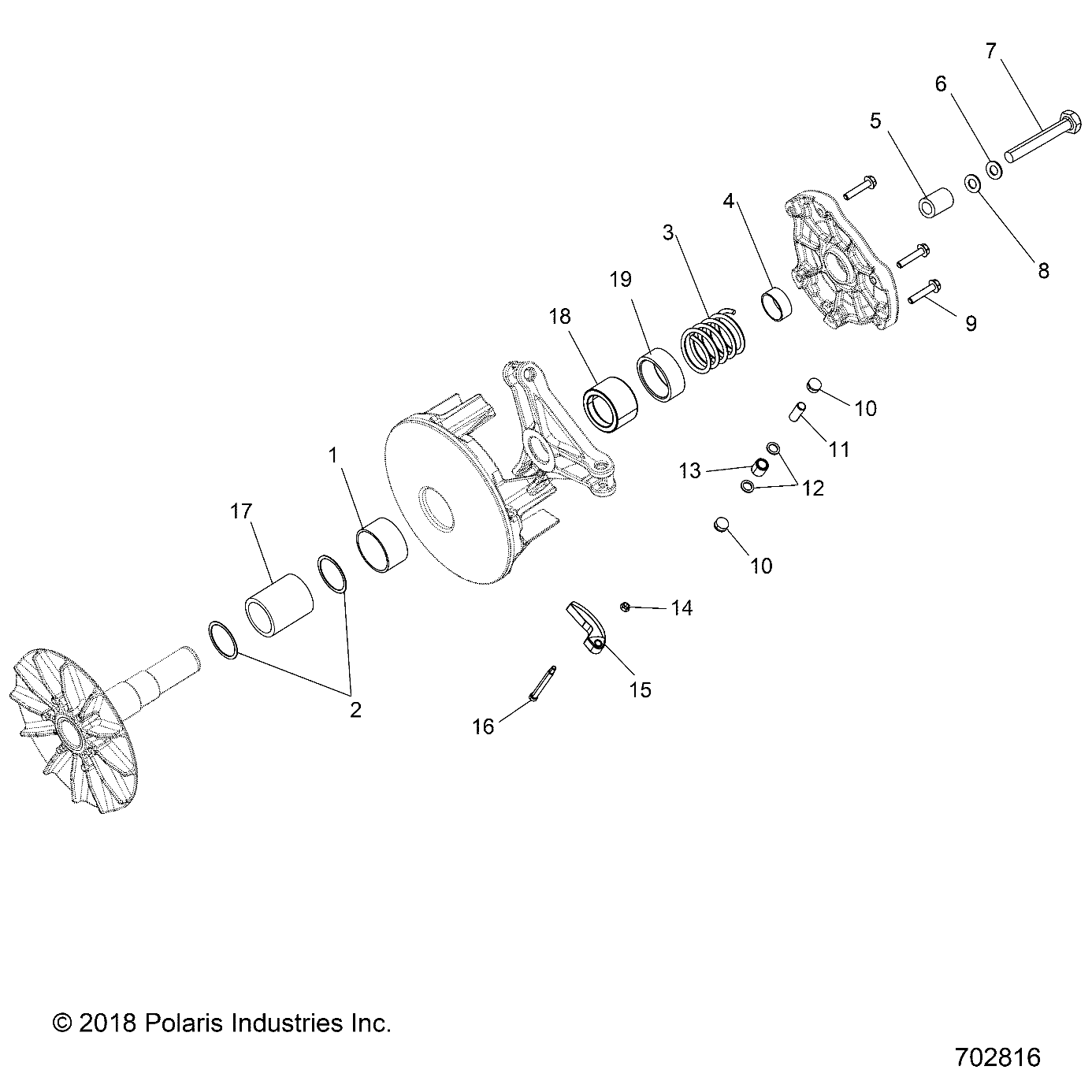

DRIVE TRAIN, PRIMARY CLUTCH
| # | Referencia | Descrição | Quant(*) | PVP | Stock |
|---|---|---|---|---|---|
| 1 | 3514492 | BEARING-DU,1.75ID | 1 | 42.63+iva |  |
| 2 | 7556335 | Washer, Clutch, Vespel | 2 | 12.78+iva | |
| 3 | 7043594 | Spring, Clutch, Blue/Red | 1 | 78.18+iva |  |
| 4 | 3514684 | BEARING COVER, .75IN | 1 | 21.32+iva | |
| 5 | 5430261 | BUSHING - RETAINING BOLT | 1 | 9.82+iva | |
| 6 | 7575202 | WASHER, INTERLOCK | 1 | 7.13+iva | |
| 7 | 7519287 | SCR-HH-7/16-20X8 GR8 PHOS/OIL | 1 | 31.98+iva | |
| 8 | 5210748 | WASHER, FLAT | 1 | 5.72+iva | |
| 9 | 7518062 | SCR-1/4-20X1.25 HX/FL GR5 | 6 | 7.13+iva | |
| 10 | 5439254 | BUTTON, CLUTCH, RUBBER BACKED | 6 | 39.08+iva | |
| 10 | 5439254 | BUTTON, CLUTCH, RUBBER BACKED | 6 | 39.08+iva | |
| 11 | 5020422 | PIN-ROLLER,(10) Substituted by 5133079 | 3 | 7.35+iva | |
| 12 | 5438247 | WASHER, CLUTCH, SPIDER ROLLER | 6 | 5.72+iva | |
| 13 | 1321457 | ASM., ROLLER AND BUSHING | 3 | 62.55+iva | |
| 14 | 7541906 | NUT-10-24-FLEX LOC-Z | 3 | 5.72+iva | |
| 15 | 5632409 | WEIGHT, SHIFT, 25-52G, PM | 3 | 46.92+iva | |
| 16 | 7512266 | SCR-SH-1/4X2 SAE4037 BLKOX&OIL | 3 | 7.35+iva | |
| 17 | 3514609 | BEARING, NEEDLE | 1 | 47.98+iva | |
| 18 | 5633000 | SPACER, CLUTCH, PM | 1 | 26.65+iva | |
| 19 | 5438823 | SPACER, CLUTCH, LIMITER | 1 | 8.58+iva | |
- • (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
