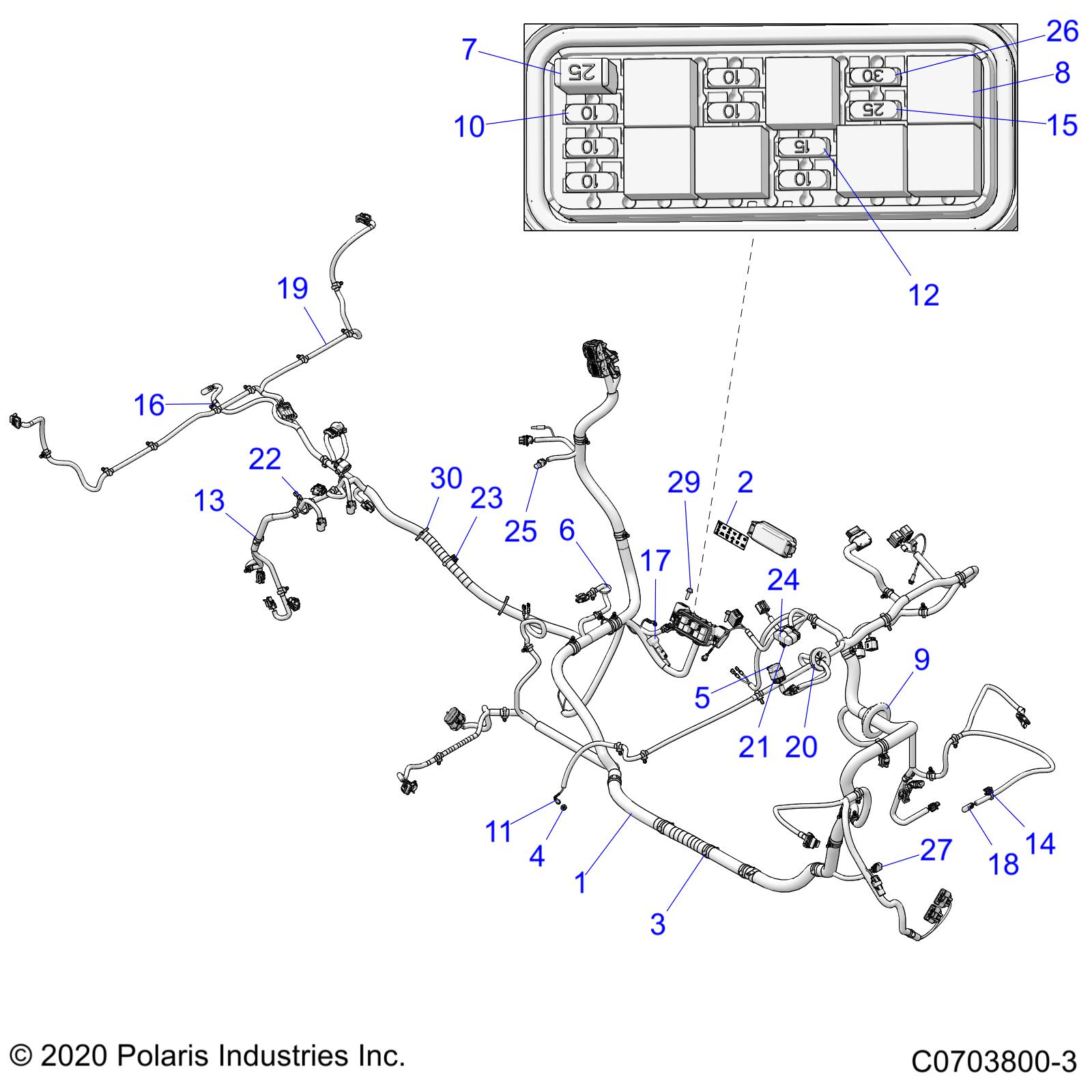

G22GXH99AL/BL

ELECTRICAL, WIRE HARNESS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2414814	HARNESS-CHASSIS [INCL. 2-18, 21-27]	1	1827.33+iva
2	7190832	LABEL, FUSE BOX	1	+iva
3	7081496	CLIP-ROUTING	AR	7.13+iva
4	7082020	CLIP - ROUTING, DIN BOX	3	7.35+iva
5	4012170	COVER - DIAGNOSTIC, W/ CLIP	1	14.40+iva
6	5415308	GROMMET - USB, 3 MM, 22 MM DIA	1	5.72+iva
7	4015771	BRAEAKER, CIRCUIT, 25 AMP	1	100.02+iva
8	4016819	RELAY - SPST, 12V, 20A, EPXY, HFA	5	46.92+iva
9	5813954	GROMMET - 65 MM, BLK	1	9.82+iva
10	2434016	FUSE, IGNITION, 10 AMP	6	8.37+iva
11	2413217	LED - PANEL MNT, 12V, BLUE	3	78.58+iva
12	4010859	Fuse, Mini Blade, 15 Amp.	2	12.60+iva
13	7082003	CABLE TIE-FIR TREE	1	6.27+iva
14	7082404	CLIP-EDGE, 3-6MM THICKNESS	1	11.72+iva
15	4011653	Fuse, 25 AMP, Mini Blade	2	14.40+iva
16	7081808	STRAP - CABLE TIE W/ EDGE CLIP	1	10.78+iva
17	2410000	DIODE - 6 AMP, 1/4, 3/16 TERM	2	54.73+iva
18	5438230	CAP - VINYL, 125X375, BLACK	2	10.47+iva
19	2413051	HARNESS-BOX	1	78.58+iva
20	5414440	GROMMET, ELECTRICAL, CAB	1	9.82+iva
21	7082134	CLIP-CONNECTOR, 6.35 MM HOLE	1	5.72+iva
22	7081033	CLIP-DOUBLE CABLE TIE W/XMAS TREE 6.35MM HOLE (BK)	2	6.83+iva
23	7081876	CLIP, EDGE, SIDE, W/STRAP	1	12.27+iva
24	4018655	CAP-EVAP CONNECTOR	1	6.27+iva
25	4018066	CAP EVAP CONNECTOR	1	6.27+iva
26	4013561	FUSE- 30 MINI BLADE 58V (GREEN)	1	10.78+iva
27	4014890	CONNECTOR-CAP, WINCH SWITCH	1	16.20+iva
28	-------	RING-RETAINING,COVER [NOT ILLUSTRATED]	AR	+iva
29	7518529	SCR-M6X1.0X20, HXHD, FLG, TDFM, BK	2	5.72+iva
30	7080138	PANDUIT STRAP	3	3.12+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
