G22GAB99CP/FP

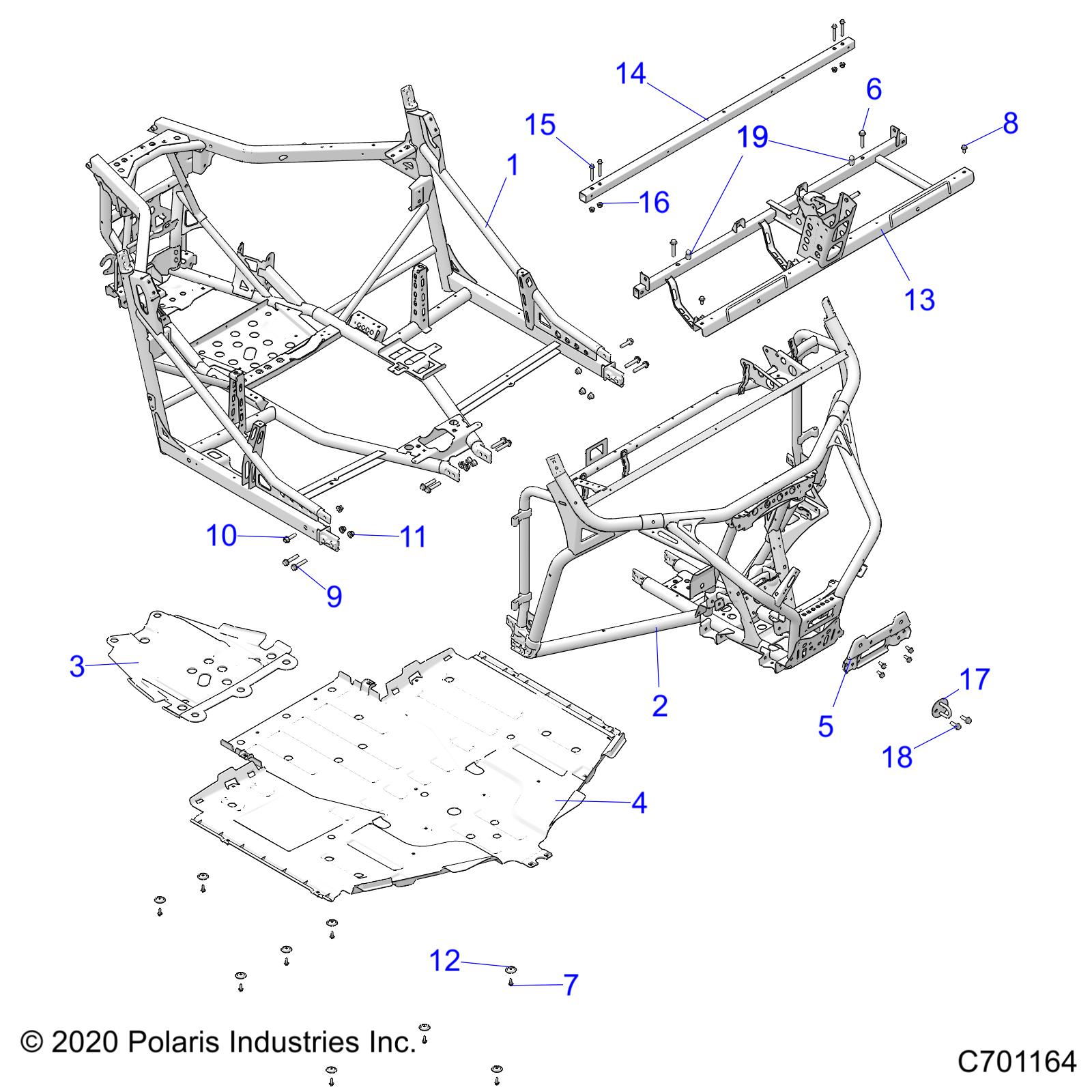

CHASSIS, MAIN FRAME AND SKID PLATES
| # | Referencia | Descrição | Quant(*) | PVP | Stock |
|---|---|---|---|---|---|
| 1 | 1025328-458 | WELD-MAIN FRAME,EU,BLK | 1 | 1159.12+iva |  |
| 2 | 1024643-458 | WELD-FRAME,FRONT,2 PC,ABS,BLK | 1 | 1011.16+iva | |
| 3 | 5456433-070 | PLATE-SKID,REAR,BLK | 1 | 303.75+iva | |
| 4 | 5452060-070 | PLATE-SKID,BLK | 1 | 227.81+iva | |
| 5 | 5259449-458 | BRACKET, SUSPENSION, MOUNT, FRONT, MATTE BLACK | 1 | 59.03+iva | |
| 6 | 7518474 | SCR-HXFL-M10X1.5X55 8.8 ZY3 | 2 | 7.43+iva | |
| 7 | 7518529 | SCR-M6X1.0X20, HXHD, FLG, TDFM, BK | 9 | 2.15+iva |  |
| 8 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 12 | 4.31+iva | |
| 9 | 7519285 | SCR-HXFL-M10X1.25X55 10.9 ZOD | 8 | 4.31+iva | |
| 10 | 7519332 | SCR-HXFL-M10X1.25X40 8.8 ZOD | 2 | 8.68+iva | |
| 11 | 7547333 | NUT-M10X1.25, FLG, NYLOC-OLIVE D | 10 | 2.87+iva | |
| 12 | 7556065 | WASHER, PLATE, SKID | 9 | 7.43+iva | |
| 13 | 1023428-329 | WELD-SEAT BASE,TR,E-COAT | 1 | 193.31+iva | |
| 14 | 1022891-329 | ASM-TUBE,TOP FRAME,E-COAT | 1 | 144.96+iva | |
| 15 | 7517281 | SCR-M8X1.25X55,HX/FL-Y | 4 | 11.16+iva | |
| 16 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 4 | 7.20+iva | |
| 17 | 1020619-458 | WELD-TOW HOOK,BLK [CP] | 1 | 122.37+iva | |
| 18 | 7519764 | SCR-HXFL-M10X1.5X30 8.8 ZOD | 2 | 4.31+iva | |
| 19 | 5632848 | LATCH, PLUNGER, SEAT | 2 | 18.29+iva | |
- • (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
