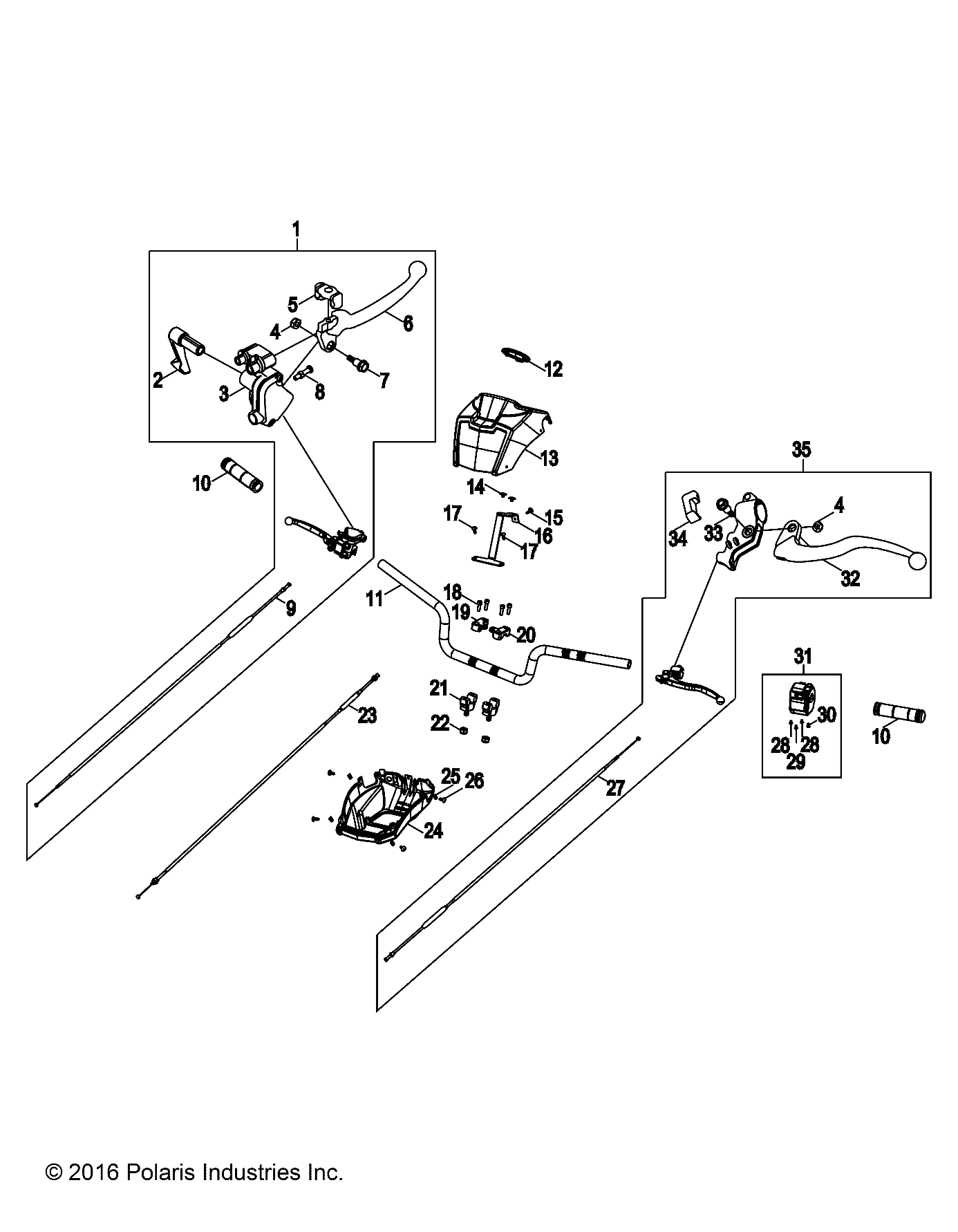

A18YAF11B5/N5

STEERING, HANDLEBAR

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	0455234	ASM., LEVER, RH [INCL. 2-9]	1	234.80+iva
2	0452202	ARM, THROTTLE	1	39.48+iva
3	0453721	MOUNT, LEVER, BRAKE, RH	1	227.90+iva
4	0450808	NUT	2	4.32+iva
4	0450808	NUT	2	4.32+iva
5	0450994	BRACKET, BRAKE CABLE	1	37.68+iva
6	0450694	LEVER, BRAKE, SIDE	1	47.37+iva
7	0450806	BOLT, BRAKE LEVER, RH	1	4.32+iva
8	0455403	SCR W/JAM NUT THROTTLE STOP	1	5.77+iva
9	0453736	WIRE, BRAKE SWITCH	1	78.98+iva
10	0453370	GRIP, HANDGRIP	2	39.48+iva
10	0453370	GRIP, HANDGRIP	2	39.48+iva
11	0453722-067	HANDLEBAR, BLACK	1	115.47+iva
12	0454672	BEZEL, SPEEDOMETER	1	57.43+iva
13	0455160-689	POD, UPPER, VOODOO BLUE	1	133.23+iva
14	0452421	SCREW	2	7.20+iva
15	0450614	SCREW	1	7.43+iva
16	0455329	BRKT-MOUND,POD,BLK W/TRIM	1	48.45+iva
16	0455398	TRIM-HBAR POD BRACKT	1	8.68+iva
16	0455399	TRIM-HBAR POD BRACKET	1	7.20+iva
17	0450040	SCREW	2	5.77+iva
17	0450040	SCREW	2	5.77+iva
18	0450148	BOLT	4	7.20+iva
19	0450461	COVER, CLAMP, RH	1	37.68+iva
20	0450460	COVER, CLAMP, LH	1	48.45+iva
21	0450459	CLAMP, SADDLE	2	53.85+iva
22	0450276	NUT	2	7.20+iva
23	0455149	CABLE, THROTTLE	1	78.73+iva
24	0455247-070	COVER,HANDLEBAR,LWR	1	82.02+iva
25	0450752	U-NUT, PLATE	2	4.32+iva
26	0450514	SCREW	2	2.87+iva
27	0453815	SENSOR, BRAKE	1	78.98+iva
28	0451148	BOLT	1	5.77+iva
28	0451148	BOLT	1	5.77+iva
29	0451149	BOLT	1	7.20+iva
30	0453708	BOLT	1	7.20+iva
31	0455150	ASM., SWITCH, LH [INCL. 28-30] Esta Referencia foi alterada para : 0455499	1	Alterada
32	0450693	LEVER, BRAKE, SIDE, BLACK	1	47.37+iva
33	0450807	BOLT	1	11.17+iva
34	0454042	LOCK, HAND BRAKE	1	26.85+iva
35	0454043	ASM., LEVER, BRAKE, LH [INCL. 4, 27,32-34]	1	101.03+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
