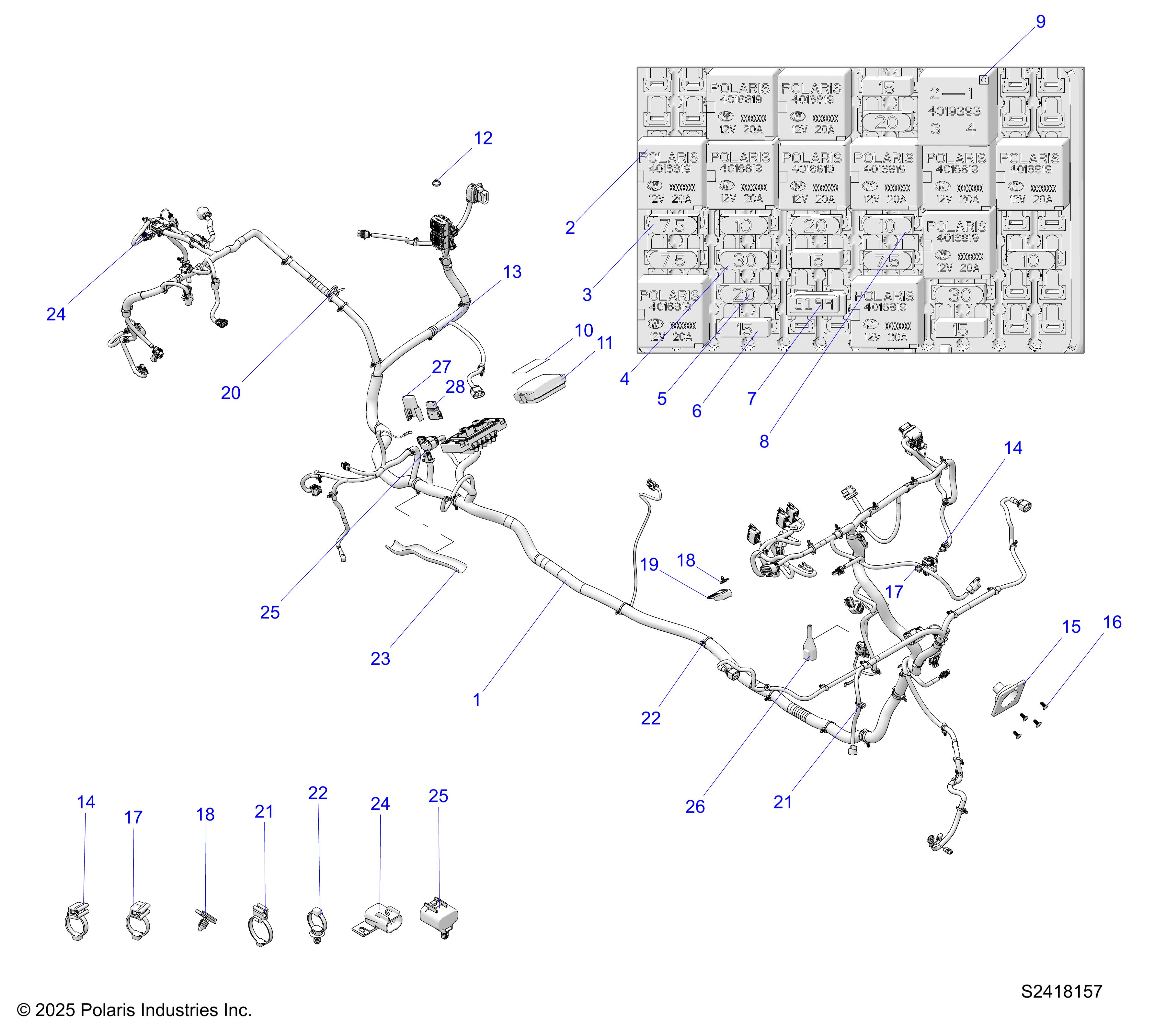

R26RSV99AK

ELECTRICAL, HARNESS CHASSIS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2418157-06	HARN-CHASSIS,HVAC,CREW,TB [INCLUDES ALL]	1	+iva
2	4016819	RELAY-SPST,12V,20A,EPXY,HFA	11	55.28+iva
3	4011068	FUSE - 7.5, MINI BLADE (BROWN)	3	20.52+iva
4	2434015	FUSE-MAIN,30 AMP	2	14.53+iva
5	2434017	FUSE-PARK,20 AMP Esta Referencia foi alterada para : 4012811	3	Alterada
6	2410280	FUSE-MINI BLADE,15 AMP Esta Referencia foi alterada para : 4010859	4	Alterada
7	4081932	RESISTOR-620 OHM, MINI	1	71.08+iva
8	2434016	FUSE-IGNITION,10 AMP	3	10.57+iva
9	4019393	SSR-4PIN	1	172.65+iva
10	7301184	DECAL-RELAY/FUSE BLOCK,HVAC	1	+iva
11	4081174	COVER-FUSEBOX,96WAY	1	108.25+iva
12	7080138	CABLE-TIE,DIA12-50MM,WTHR-RES.	1	3.12+iva
13	7082747	STRAP-TREE MOUNT CABLE TIE	1	4.32+iva
14	7082403	CLIP-EDGE, 1-3mm THICKNESS	1	7.43+iva
14	7082403	CLIP-EDGE, 1-3mm THICKNESS	1	7.43+iva
15	5814560	GROMMET - 65MM, W/FLANGE, BLK	1	16.15+iva
16	7670090	CLIP-FIR TREE,DART,6.35MM	4	2.15+iva
17	7082400	CLIP-EDGE,1-3MM THICKNESS	1	8.68+iva
17	7082400	CLIP-EDGE,1-3MM THICKNESS	1	8.68+iva
18	7082134	CLIP-FIR,HOLE6.35MM	1	7.20+iva
18	7082134	CLIP-FIR,HOLE6.35MM	1	7.20+iva
19	4083558	CAP-CON,16P,GT150/280	1	18.18+iva
20	7081916	CABLE-TIE,DIA6-38MM,DUAL-LOOP	1	7.20+iva
21	7081808	CLIP-EDGE,1-3MM,6-45MM,SERT.	1	10.90+iva
21	7081808	CLIP-EDGE,1-3MM,6-45MM,SERT.	1	10.90+iva
22	7081496	CLIP FIR-TREE,DIA6-33MM	47	7.43+iva
22	7081496	CLIP FIR-TREE,DIA6-33MM	47	7.43+iva
23	5466438	TRAY-ROUTING,HARNESS	1	+iva
24	4083557	CAP-CONN,2P,MP280	1	18.18+iva
24	4083557	CAP-CONN,2P,MP280	1	18.18+iva
25	4083556	CAP-CONN,8P,DIAGNOSTIC,W/CLIP	1	18.18+iva
25	4083556	CAP-CONN,8P,DIAGNOSTIC,W/CLIP	1	18.18+iva
26	4080238	THROTTLE-CON BOOT	1	18.18+iva
27	4018207	HOLDER-FUSE,SEALED	1	115.47+iva
28	4017180	FUSE-MAXI,50A	1	71.08+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
