A19SWS57P1/P2

ELECTRICAL, HARNESS

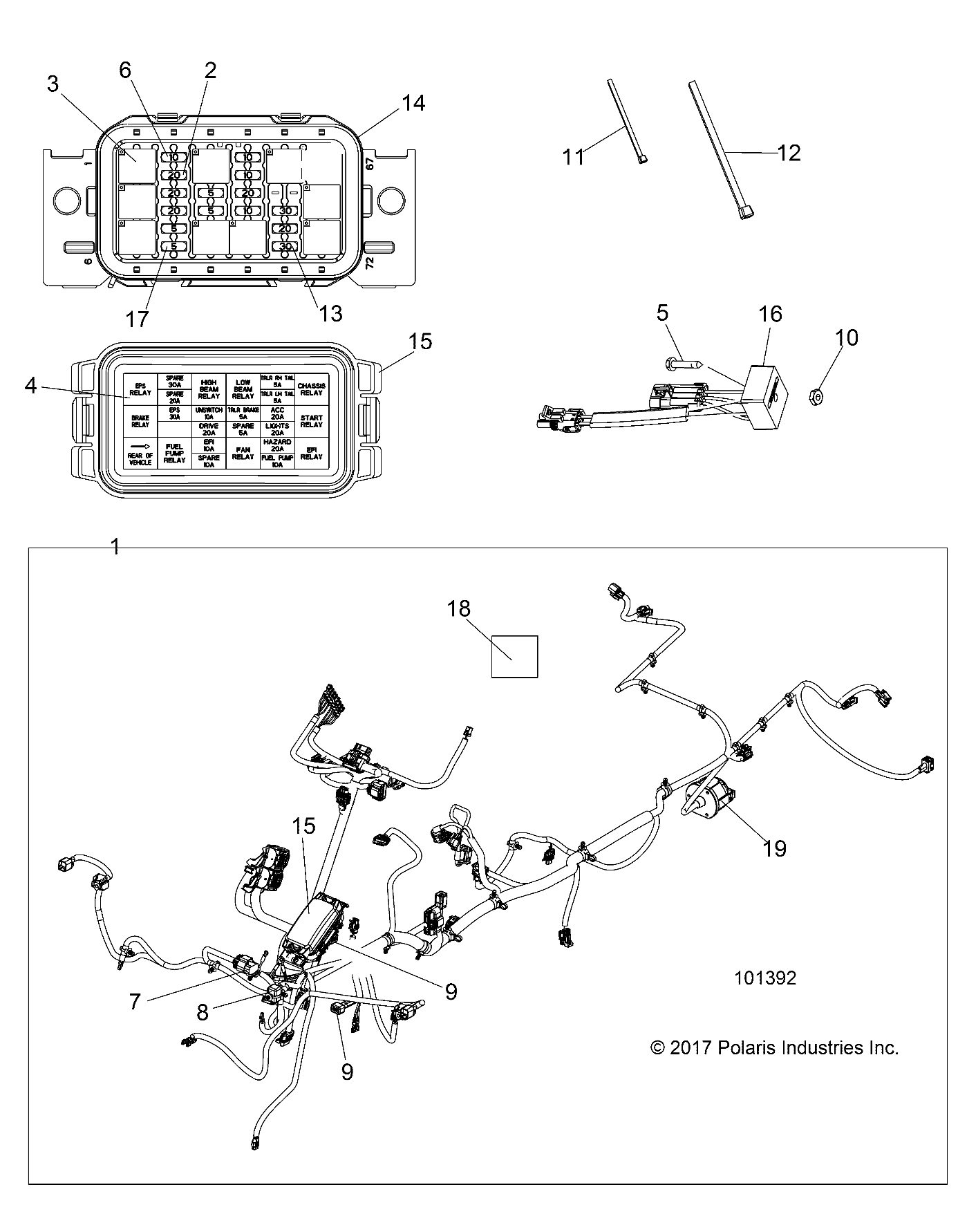

Responsive image
#ReferenciaDescriçãoQuant(*)PVPStock
1 2414018 HARNESS-MAIN,570 X2/UTE TRCTR [INCL COVER] 1760.80+ivaStock Consultar
2 2434017 FUSE, 20 AMP Esta Referencia foi alterada para : 4012811 5AlteradaStock Consultar
3 4016819 RELAY-SPST,12V,20A,EPXY,HFA 946.92+ivaStock Consultar
4 7186744 LABEL, FUSE BOX 1+ivaStock Consultar
5 7518418 SCREW 15.72+ivaStock Consultar
6 2434016 FUSE, IGNITION, 10 AMP 48.37+ivaStock Consultar
7 4012170 CLIP, DIAGNOSTIC 114.40+ivaStock Consultar
8 2411086 BREAKER-CIRCUIT,15 AMP,SEALED 162.55+ivaStock Consultar
9 2410000 DIODE, 6 AMP 254.73+ivaStock Consultar
9 2410000 DIODE, 6 AMP 254.73+ivaStock Consultar
10 7542122 NUT 14.28+ivaStock Sim
11 7080138 PANDUIT STRAP 83.12+ivaStock Consultar
12 7080761 CABLE-TIE,10-102MM,WEATH.-RES. 44.17+ivaStock Consultar
13 2434015 FUSE,MAIN,30 AMP,(10) 212.60+ivaStock Consultar
14 4015058 FUSEBOX 139.08+ivaStock Consultar
15 4014047 COVER, FUSEBOX 1107.17+ivaStock Consultar
15 4014047 COVER, FUSEBOX 1107.17+ivaStock Consultar
16 4012829 RELAY, 9A, LONG LD 1114.32+ivaStock Sim
17 4011652 FUSE, 5 AMP 418.75+ivaStock Consultar
18 4016237 SWITCH, KI OTTO 15.72+ivaStock Consultar
19 4012558 CONNECTOR, & WAY 137.32+ivaStock Consultar


• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
