R25MAA57B1

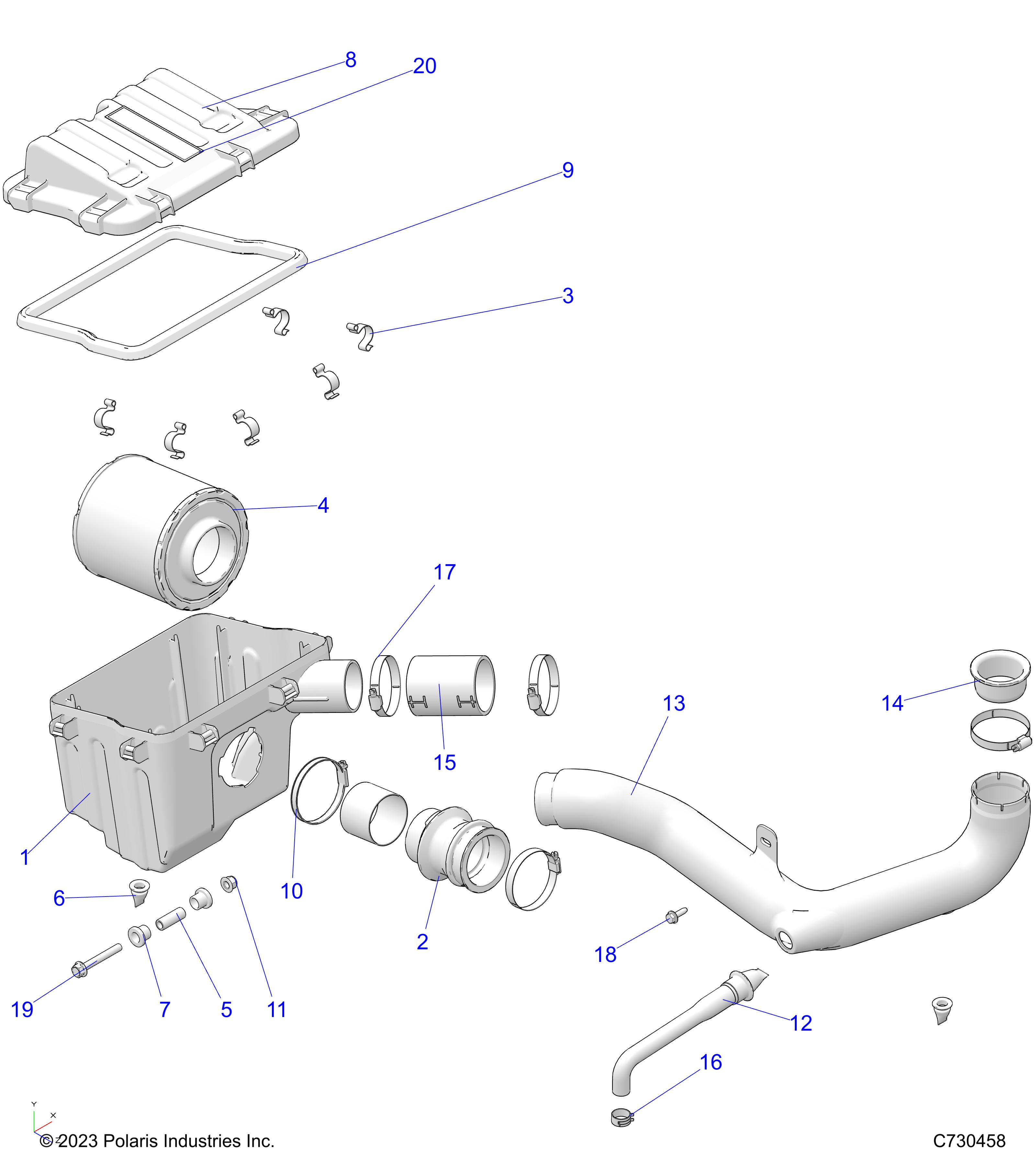

ENGINE, AIR INTAKE SYSTEM
| # | Referencia | Descrição | Quant(*) | PVP | Stock |
|---|---|---|---|---|---|
| - | ------- | ASM-AIRBOX,570 [INCLS. 1-9] | 1 | +iva |  |
| 1 | 5457956 | BOX, AIR INTAKE | 1 | 194.54+iva | |
| 2 | 5417998 | BOOT-ENGINE,INTAKE | 1 | 64.59+iva | |
| 3 | 5242044 | CLIP-AIR BOX | 6 | 12.91+iva | |
| 4 | 7082037 | FILTER-AIR | 1 | 54.00+iva | |
| 5 | 5138987 | SHAFT-COMPRESSION LMTR,34.4MM | 1 | 26.84+iva | |
| 6 | 5414472 | PLUG-DRAIN | 2 | 7.43+iva | |
| 7 | 5414719 | BUSHING-MOUNT | 2 | 4.31+iva | |
| 8 | 5457955 | COVER, AIRBOX | 1 | 108.21+iva | |
| 9 | 5815088 | SEAL, AIR BOX COVER | 1 | 43.05+iva | |
| 10 | 7080707 | CLAMP-BAND,NARROW 60-80MM | 1 | 5.76+iva | |
| 11 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 1 | 7.20+iva |  |
| 12 | 2521911 | ASM-HOSE, BREATHER [INCLS. VALVE] | 1 | 79.35+iva | |
| 12 | 7052577 | VALVE-BREATHER W/.53" BARB ID | 1 | 35.87+iva | |
| 13 | 5414503 | DUCT-INTAKE,AIRBOX | 1 | 85.25+iva | |
| 14 | 5415033 | SEAL,ENGINE,INLET | 1 | 7.20+iva | |
| 15 | 5418319 | HOSE, ENGINE, INLET | 1 | 26.84+iva | |
| 16 | 7081026 | CLAMP-HOSE,SPRING .81 | 1 | 12.40+iva | |
| 17 | 7081623 | CLAMP-HOSE 70MM DIA. WORM GEAR | 4 | 5.76+iva | |
| 18 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 1 | 2.15+iva | |
| 19 | 7519298 | SCR-HXFL-M8X1.25X60 8.8 ZOD | 1 | 7.20+iva | |
| 20 | 7195873 | DECAL-CAUT.AIR BOX | 1 | 8.45+iva | |
- • (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
