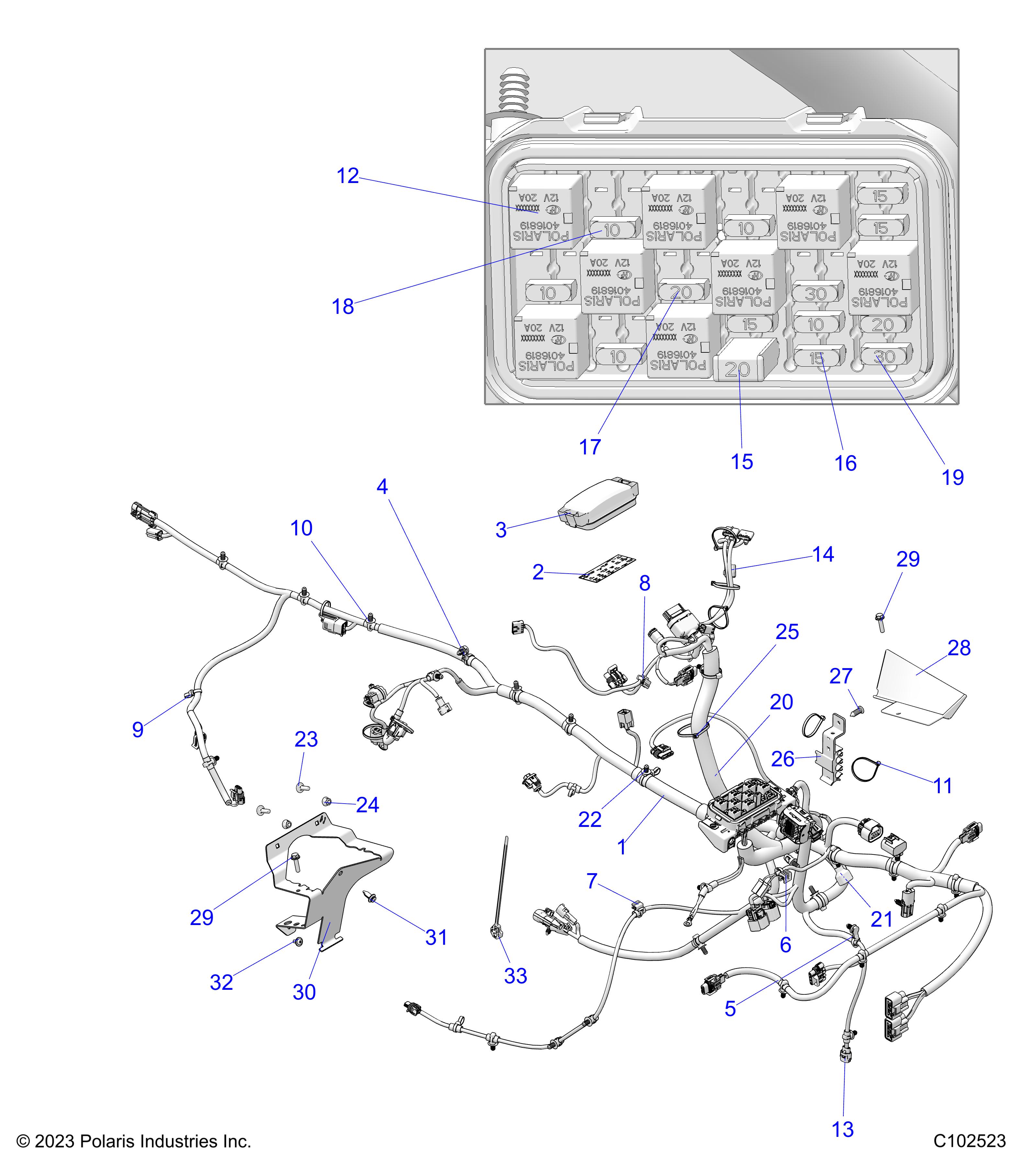

A25SJR57AM

ELECTRICAL, WIRE HARNESS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2417315	HARN-MAIN,SPMN,ETC,2UP INCL. 1-22]	1	1326.32+iva
1	2417315	HARN-MAIN,SPMN,ETC,2UP INCL. 1-22]	1	1326.32+iva
2	7300888	LABEL - FUSE BOX	1	+iva
3	4012170	COVER - DIAGNOSTIC, W/ CLIP	1	16.36+iva
4	7082458	CLIP OFFSET 12.5MM FIRTREE(BK)	1	7.20+iva
5	7082406	CLIP-FIR TREE,12.5MM OFF,90DEG	1	5.76+iva
6	7082404	CLIP-EDGE, 3-6MM THICKNESS	1	12.91+iva
7	7082403	CLIP-EDGE, 1-3mm THICKNESS	1	7.43+iva
8	7082402	CLIP-EDGE, 1-3mm THICKNESS	1	11.16+iva
9	7081916	CABLE-TIE,DIA6-38MM,DUAL-LOOP	3	7.20+iva
10	7081496	CLIP-ROUTING	22	7.43+iva
11	7080138	CABLE-TIE,DIA12-50MM,WTHR-RES.	8	3.12+iva
12	4016819	RELAY - SPST, 12V, 20A, EPXY, HFA	8	55.26+iva
13	4014891	CONNECTOR-CAP, WINCH CONTACTOR	1	16.36+iva
14	4014890	CONNECTOR-CAP, WINCH SWITCH	1	18.18+iva
15	4011372	BREAKER-CIRCUIT,20 AMP	1	71.05+iva
16	4010859	FUSE-15AMP,MINI BLADE	4	14.53+iva
17	2434017	FUSE-PARK,20 AMP Esta Referencia foi alterada para : 4012811	2	Alterada
18	2434016	FUSE-IGNITION,10 AMP	5	10.56+iva
19	2434015	FUSE-MAIN,30 AMP	2	14.53+iva
20	2411035	DIODE - 6 AMP, 1/4, 3/16 TERM	1	86.57+iva
21	2410000	DIODE - 6 AMP, 1/4, 3/16 TERM	1	63.16+iva
22	7081033	CABLE-TIE,7-46MM,DUAL-LOOP	2	6.83+iva
23	7519249	SCREW, RH CARRIAGE	2	5.76+iva
24	7547274	NUT-M6 FLANGE,NYLOC	3	2.15+iva
25	7080761	CABLE-TIE,10-102MM,WEATH.-RES.	5	4.22+iva
26	5457074	CLIP-ROUTING,MIDFRAME	1	7.20+iva
27	7670101	CLIP-XMAS TREE, .945 X .228	1	4.31+iva
28	5465393-070	DIVERTER,WTR SHLD,P-190X,BLK	1	12.91+iva
29	7518533	SCR-HXFL-M6X1.0X25 8.8 RIE	2	2.15+iva
29	7518533	SCR-HXFL-M6X1.0X25 8.8 RIE	2	2.15+iva
30	5268539-458	BRKT-FUSE BLOCK,M.BLK	1	32.29+iva
31	7661855	RIVET-TUFLOK,.315-.325X.787	1	2.15+iva
32	7512084	SCR-10-24X1/2, PHTXTRIRD, SEMS-Y	1	2.15+iva
33	7082649	CABLE-TIE,M10X1.5 STUD MNT	1	7.20+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
