R24E3SC4DD

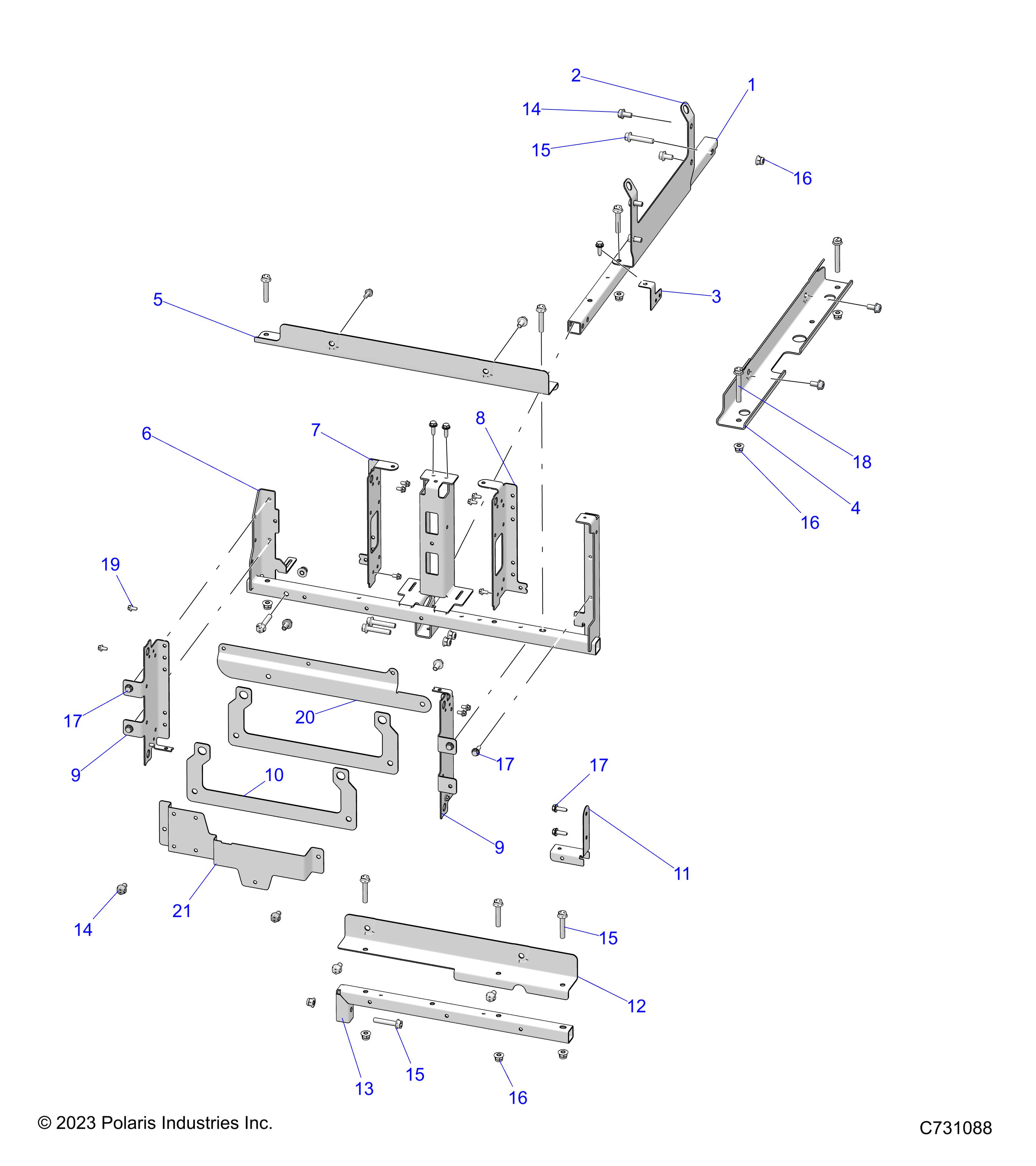

ELECTRICAL, BATTERY, MOUNTING, PT R24E3SC4DD (C731088)
Responsive image
#ReferenciaDescriçãoQuant(*)PVPStock
1 5345956-329 TUBE-SUPPORT,BATTERY,CROSS,BLK 1100.02+ivaStock Consultar
2 5274767-329 BRKT-SUPPORT,BATT,FRONT,BLK 147.98+ivaStock Consultar
3 5273877-329 BRKT-CABLE,SHIFT,BLK 111.72+ivaStock Consultar
4 5274768-329 BRKT-SUPPORT,BATT,REAR,BLK 168.20+ivaStock Consultar
5 5274766-329 BRKT-SUPPORT,BATT,RH,BLK [RH ULITIMATE BRACKET] 142.63+ivaStock Consultar
6 1028853-329 WELD-MOUNT,BATT,CHARGERS,BLK 1144.50+ivaStock Consultar
7 5273029-329 BRKT-MNT,CHARGER,INNER,FRT,BLK 131.98+ivaStock Consultar
8 5273028-329 BRKT-MNT,CHARGER,INNER,RR,BLK 131.98+ivaStock Consultar
9 5273186-329 BRKT-MNT,CHARGER,ROUTING,BLK 226.65+ivaStock Consultar
9 5273186-329 BRKT-MNT,CHARGER,ROUTING,BLK 226.65+ivaStock Consultar
10 5273676-329 BRKT-BATTERY,LIFT,BLK 268.20+ivaStock Consultar
11 5273889-329 BRKT-HARNESS, CHASSIS,BLK 111.72+ivaStock Consultar
12 5274765-329 BRKT-SUPPORT,BATT,LH,BLK [LH ULTIMATE BRACKET] 147.98+ivaStock Consultar
13 5345990-329 TUBE-SUPPORT,BATTERY,OUTER,BLK 170.37+ivaStock Consultar
14 7521332-16 SCR-HXFL-M8X1.25X16 10.9 ZFB 134.28+ivaStock Consultar
14 7521332-16 SCR-HXFL-M8X1.25X16 10.9 ZFB 134.28+ivaStock Consultar
15 7521332-45 SCR-HXFL-M8X1.25X45 10.9 ZFB 134.28+ivaStock Consultar
15 7521332-45 SCR-HXFL-M8X1.25X45 10.9 ZFB 134.28+ivaStock Consultar
15 7521332-45 SCR-HXFL-M8X1.25X45 10.9 ZFB 134.28+ivaStock Consultar
16 7548028 NUT-HXFL-M8X1.25 8 ZTB NYL 122.85+ivaStock Consultar
16 7548028 NUT-HXFL-M8X1.25 8 ZTB NYL 122.85+ivaStock Consultar
16 7548028 NUT-HXFL-M8X1.25 8 ZTB NYL 122.85+ivaStock Consultar
17 7518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BK 105.72+ivaStock Consultar
17 7518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BK 105.72+ivaStock Consultar
17 7518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BK 105.72+ivaStock Consultar
18 7521332-60 SCR-HXFL-M8X1.25X60 10.9 ZFB 24.28+ivaStock Consultar
19 7517795 SCREW-M5X0.8X10,HX/FL-YD 127.13+ivaStock Consultar
20 5273868-329 BRKT-HARNESS ROUTING,BLK 126.65+ivaStock Consultar
21 5274500-329 BRKT-RTG,HARNESS,BLK 153.58+ivaStock Consultar


• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
