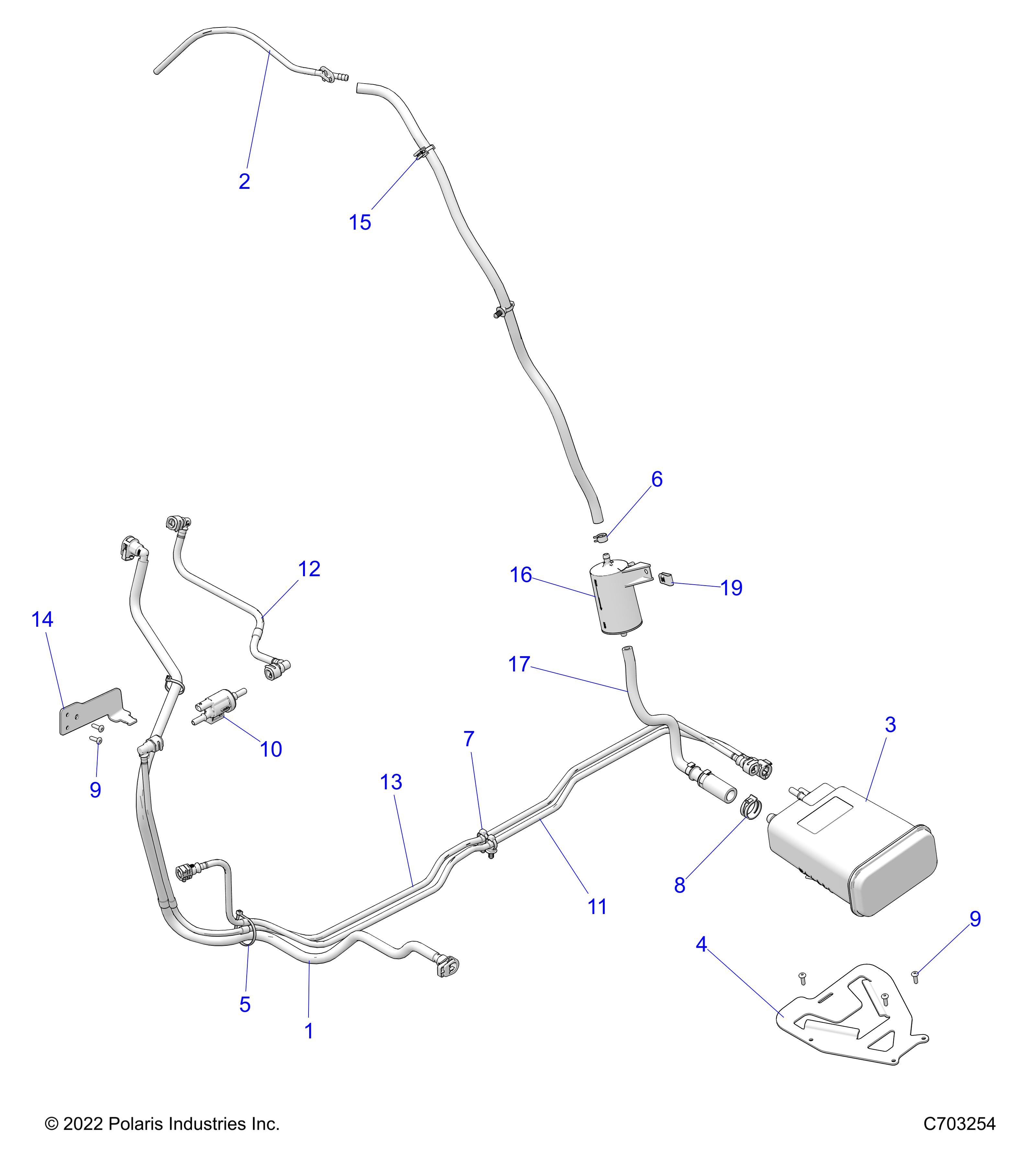

Z23RGD2KAJ/AK/BJ/BK
FUEL SYSTEM, FUEL LINES, EVAP
| # | Referencia | Descrição | Quant(*) | PVP | Stock |
|---|---|---|---|---|---|
| 1 | 2522359 | ASM-FUEL LINE,G4 | 1 | 234.71+iva |  |
| 2 | 2522401 | ASM-LINE,VENT TERM | 1 | 55.26+iva | |
| 3 | 2521786 | CANISTER-ACTIVATED CARBON | 1 | 122.63+iva | |
| 4 | 5268296-329 | BRKT-MNT CANISTER,BLK | 1 | 48.43+iva | |
| 5 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 2 | 4.22+iva | |
| 6 | 7081432 | CLAMP-HOSE, (LARGE GREEN) | 1 | 7.20+iva | |
| 7 | 7081496 | CLIP-ROUTING | 3 | 7.43+iva |  |
| 8 | 7081693 | CLAMP-SPRINGBAND 24/12 | 1 | 5.76+iva | |
| 9 | 7661637 | RIVET,INTERLOCK,Z(50) | 5 | 2.15+iva | |
| 9 | 7661637 | RIVET,INTERLOCK,Z(50) | 5 | 2.15+iva | |
| 10 | 2521964 | VALVE-PURGE | 1 | 91.81+iva | |
| 11 | 2522164 | ASM-LINE,TANK TO CANISTER | 1 | 93.78+iva | |
| 12 | 2522296 | ASM-LINE,PURGE TO TB | 1 | 78.95+iva | |
| 13 | 2522297 | ASM-LINE,CANISTER TO PURGE | 1 | 108.21+iva | |
| 14 | 5269075-329 | BRKT-MNT PURGE VALVE,ECOAT | 1 | 43.05+iva | |
| 15 | 7081808 | STRAP - CABLE TIE W/ EDGE CLIP | 1 | 10.90+iva | |
| 16 | 2521750 | FILTER-CANISTER VENT | 1 | 68.86+iva | |
| 17 | 2522459 | ASM-HOSE,VENT TO CANISTER | 1 | 78.95+iva | |
| 19 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 2 | 2.15+iva | |
- • (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
