G23GXP99A/99B

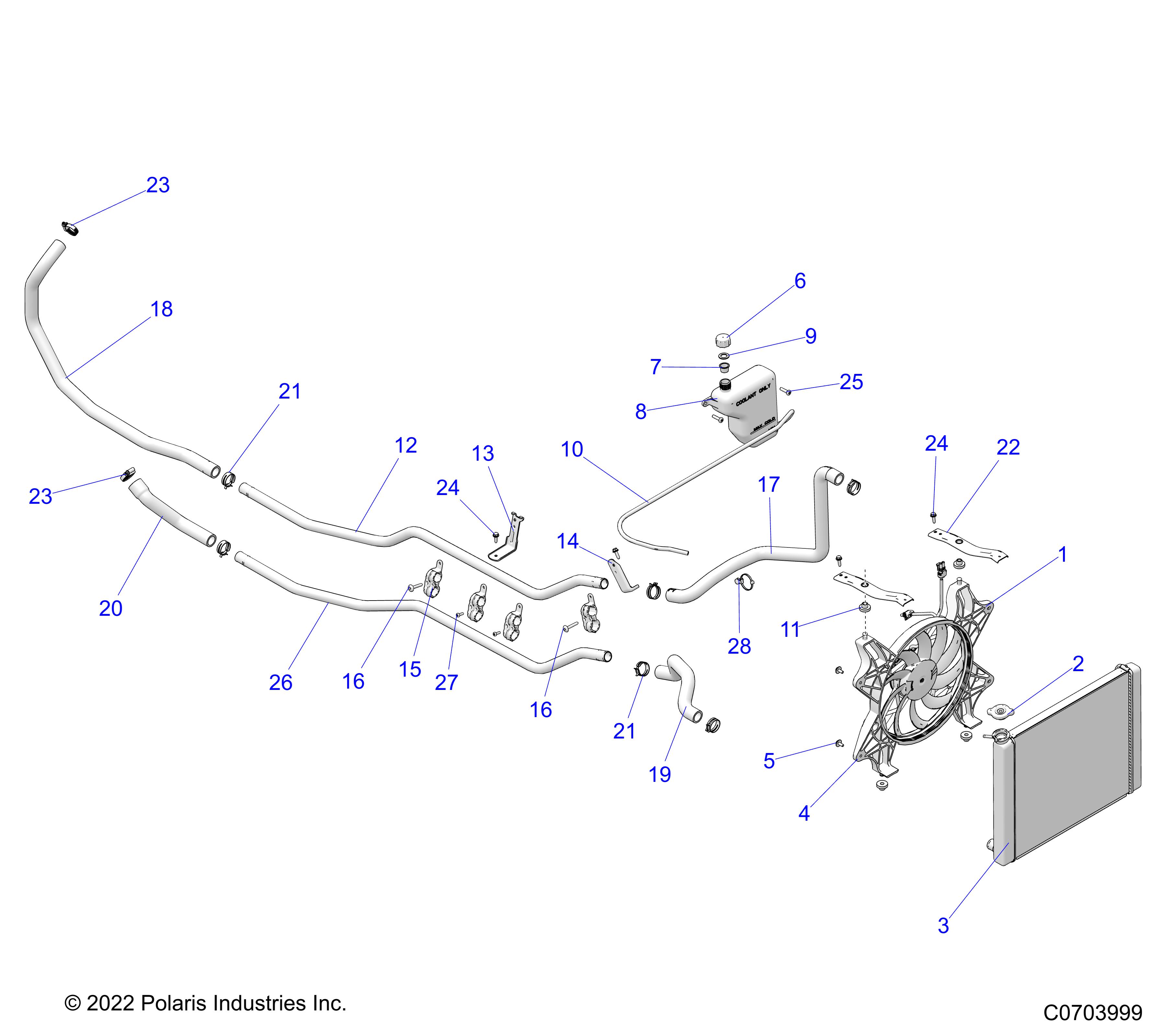

ENGINE, COOLING SYSTEM
Responsive image
#ReferenciaDescriçãoQuant(*)PVPStock
1 1240712 ASM., RADIATOR [INCLUDES 2-5] 1858.38+ivaStock Consultar
2 1240694 CAP, RADIATOR 162.55+ivaStock Consultar
3 1240745 ASM., RADIATOR, CORE 1695.81+ivaStock Consultar
4 2412447 FAN-ASSEMBLY 1382.87+ivaStock Consultar
5 7519585 BOLT, M6X15MM 411.72+ivaStock Consultar
6 5430743 CAP, OVER FLOW BOTTLE, DRILLED 110.47+ivaStock Consultar
7 5433774 CAP,PLUG9X(GRN),FLEX TEMP(10) 110.47+ivaStock Sim
8 5439202 TANK, SURGE 1143.57+ivaStock Consultar
9 5810279 GASKET, OVER FLOW CAP 17.35+ivaStock Sim
10 8450003-95 FUEL LINE-95 CENTIMETERS Esta Referencia foi alterada para : 8450003-100 ARAlteradaStock Consultar
11 7052028 GROMMET-FLANGED,.36X.56X1.06 49.82+ivaStock Consultar
12 5141611 TUBE-COOLANT,1" 170.37+ivaStock Consultar
13 5259433-329 BRACKET, COOLANT TUBE, BLACK 126.65+ivaStock Consultar
14 5260766-329 BRACKET, COOLANT TUBE, BLACK 126.65+ivaStock Consultar
15 5451221 BRACKET, COOLANT TUBE 411.03+ivaStock Consultar
16 7519001 SCR-TXTH-M6X1.0X50, 8.8, ZPB 25.72+ivaStock Consultar
16 7519001 SCR-TXTH-M6X1.0X50, 8.8, ZPB 25.72+ivaStock Consultar
17 5417056 HOSE, UPPER, RADIATOR 170.37+ivaStock Consultar
18 5415451 HOSE, ENGINE OUTLET, REAR 170.37+ivaStock Consultar
19 5414532 HOSE, LOWER, RADIATOR, LONG 170.37+ivaStock Consultar
20 5415452 HOSE-ENGINE INLET 139.08+ivaStock Consultar
21 7080844 SPRINGBAND-CLAMP 35/12,BLK 612.78+ivaStock Consultar
21 7080844 SPRINGBAND-CLAMP 35/12,BLK 612.78+ivaStock Consultar
22 5256879-329 BRACKET, UPPER RADIATOR MOUNT, BLACK 231.98+ivaStock Consultar
23 7081192 CLAMP, HOSE (WORM DR) 25-40MM 211.03+ivaStock Consultar
23 7081192 CLAMP, HOSE (WORM DR) 25-40MM 211.03+ivaStock Consultar
24 7518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BK 45.72+ivaStock Consultar
24 7518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BK 45.72+ivaStock Consultar
25 7518158 SCREW, #14X1 HI/LO-PH-PN TRX-M 27.13+ivaStock Consultar
26 5141612 TUBE-COOLANT,1" 178.58+ivaStock Consultar
27 7512026 SCREW-#10X3/4-HI/LO-PN-T25,TRX-M 25.72+ivaStock Consultar
28 7082406 CLIP-FIR TREE,12.5MM OFF,90DEG 14.28+ivaStock Consultar


• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
