A23SGE95AN

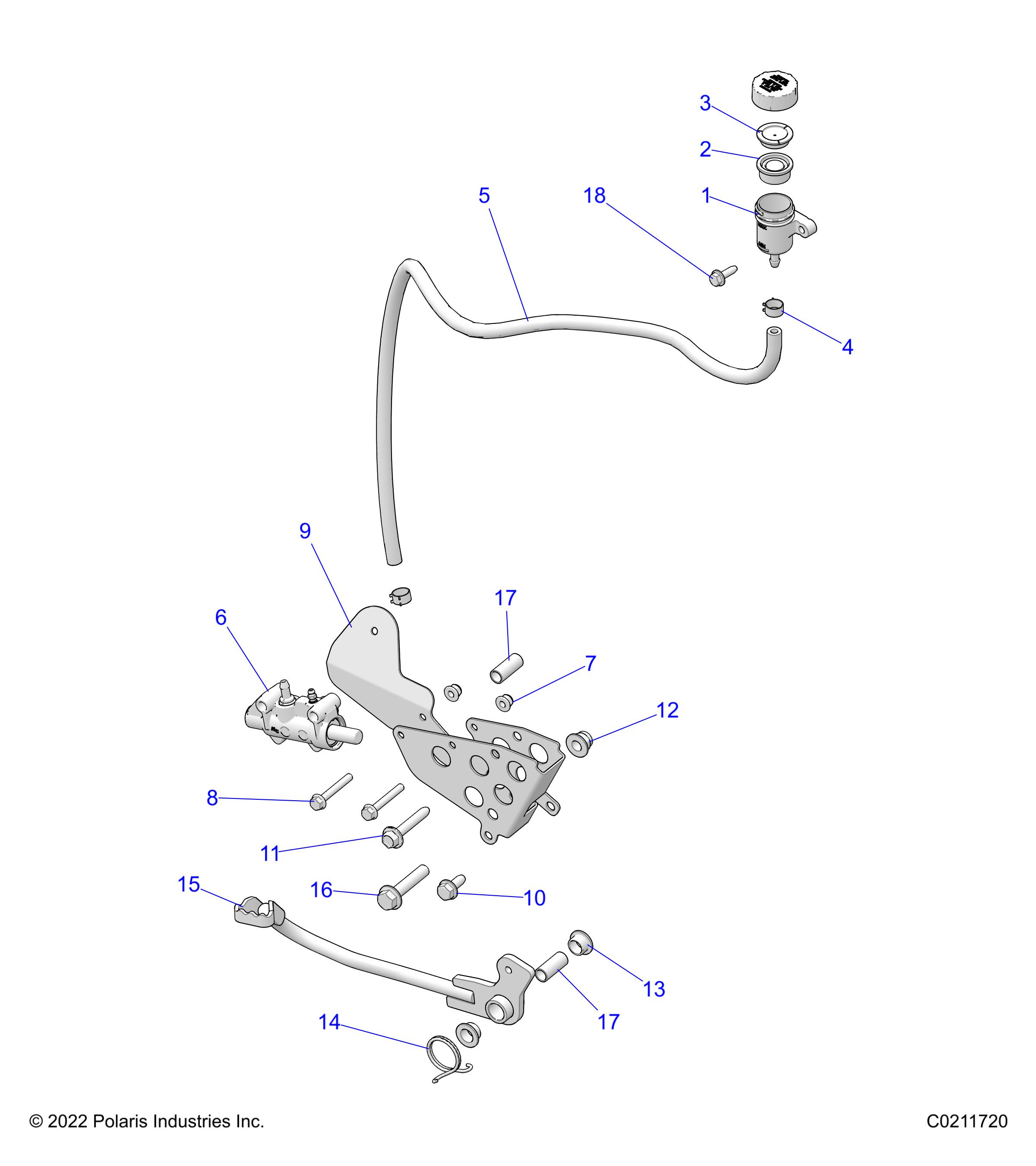

BRAKES, BRAKE PEDAL AND MASTER CYLINDER
| # | Referencia | Descrição | Quant(*) | PVP | Stock |
|---|---|---|---|---|---|
| 1 | 1911224 | ASM-RESERVOIR,BRAKE,TALL,2-EAR [INCL. 2,3, CAP] | 1 | 63.18+iva |  |
| 2 | 5413262 | DIAPHRAGM, RESERVOIR, BRAKE | 1 | 10.57+iva | |
| 3 | 5437041 | RING, RESERVOIR, BRAKE | 1 | 10.90+iva | |
| 4 | 7080003 | Clamp, Hose, Red | 2 | 2.68+iva |  |
| 5 | 1911267-826 | HOSE-RESERVOIR,BRAKE,826MM | 1 | 26.85+iva | |
| 6 | 1913033 | ASM-M/CYL,DIRMC,3/4",B/U-RING | 1 | 227.90+iva | |
| 7 | 7547274 | NUT, M6 FLANGE, NYLOC | 2 | 2.15+iva | |
| 8 | 7517950 | SCR-M6X1.0X45 HX-FL-Y/D | 2 | 8.68+iva | |
| 9 | 5266924-329 | BRKT-BRAKE MOUNT,BLK | 1 | 43.07+iva | |
| 10 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 1 | 4.32+iva | |
| 11 | 7518677 | SCR-THFHL-M8X1.25X50 CHS ZOD | 1 | 7.20+iva | |
| 12 | 7547333 | NUT-M10X1.25, FLG, NYLOC-OLIVE D | 1 | 2.87+iva | |
| 13 | 5433189 | BUSHING, PIVOT, PEDAL | 2 | 7.20+iva | |
| 14 | 7041750 | Spring, Torsion, Brake | 1 | 18.18+iva | |
| 15 | 1913603-067 | WELD-LEVER,BRAKE,WL SPMN,BLK | 1 | 93.82+iva | |
| 16 | 7518559 | BOLT-M10X1.25X50,HXFLG-OLIVE D | 1 | 8.68+iva | |
| 17 | 5135720 | SPACER-12.7X10.2X30.5MM | 2 | 9.92+iva | |
| 17 | 5135720 | SPACER-12.7X10.2X30.5MM | 2 | 9.92+iva | |
| 18 | 7518529 | SCR-M6X1.0X20, HXHD, FLG, TDFM, BK | 2.15+iva | |
- • (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
