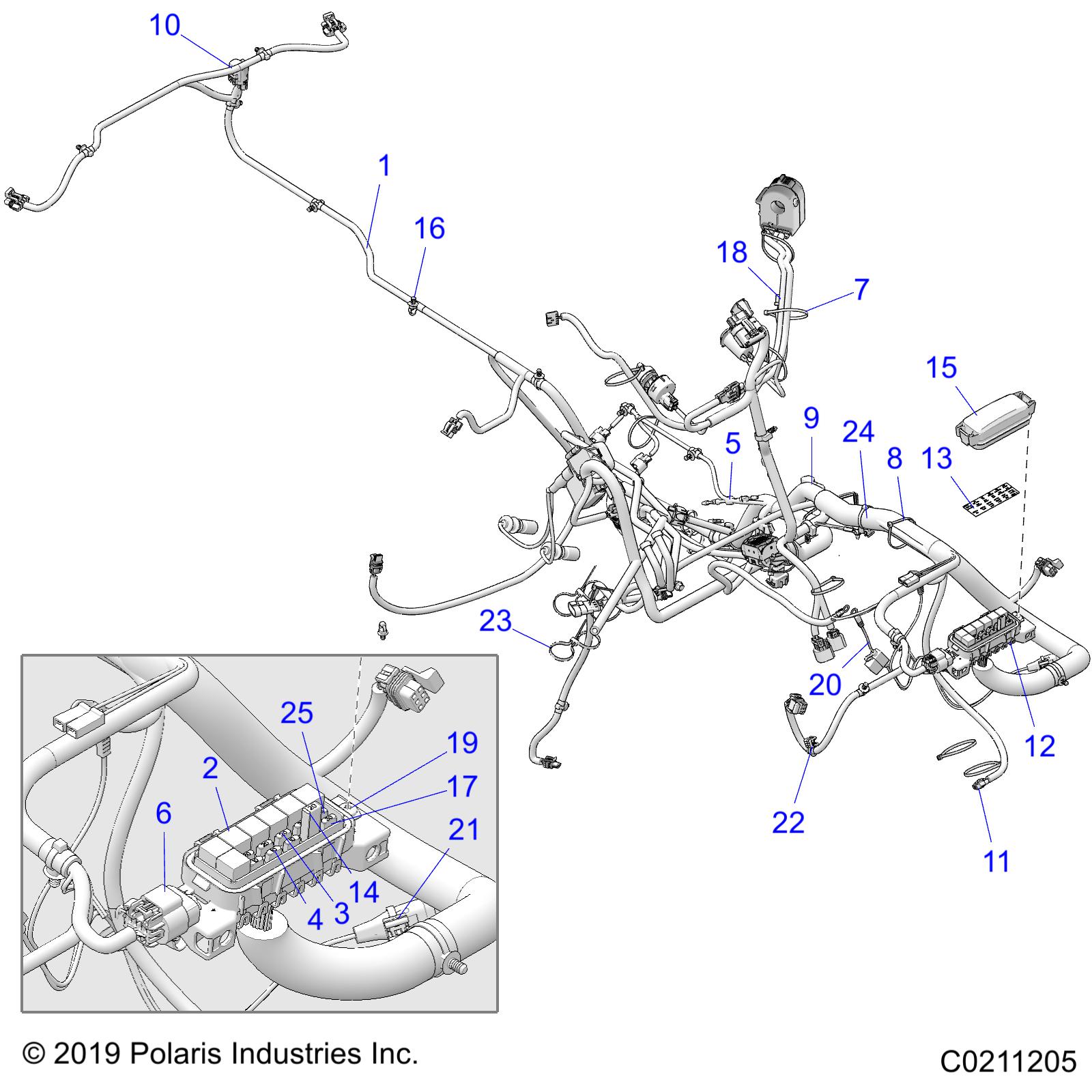

A20SXZ85AF/AP/CAF/CAP

ELECTRICAL, HARNESS

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	2415098	HARNESS-MAIN,SPXP NON-ETC,LED	1	1451.07+iva
2	4016819	RELAY-SPST,12V,20A,EPXY,HFA	7	55.26+iva
3	2434017	FUSE, 20AMP Esta Referencia foi alterada para : 4012811	3	Alterada
4	2434016	FUSE, IGNITION, 10 AMP	3	10.56+iva
5	2411035	DIODE, 6AMP	2	86.57+iva
6	4012170	COVER, DIAGNOSTIC	1	16.36+iva
7	7080138	PANDUIT STRAP	7	3.12+iva
8	7080761	CABLE-TIE,10-102MM,WEATH.-RES.	5	4.22+iva
9	2410000	DIODE - 6 AMP	1	63.16+iva
10	4016259	COVER, TAILLIGHT, LED W/CLIP	1	12.71+iva
11	4014891	CAP, WINCH CONTACTOR	1	16.36+iva
12	2202607	KIT, FUSIBLE LINK, .8 MM	1	53.83+iva
12	2202670	KIT, FUSIBLE LINK, 1.0 MM	1	48.43+iva
13	7192266	LABEL, FUSE BOX	1	0.02+iva
14	4011372	BREAKER, CIRCUIT, 20 AMP	1	71.05+iva
15	5415598	SEAL, FUSE CENTER	1	11.83+iva
15	4015011	COVER, FUSEBOX	1	93.78+iva
16	7081496	CLIP-ROUTING	15	7.43+iva
17	2434015	FUSE,MAIN,30 AMP,(10)	2	14.53+iva
18	4014890	CONNECTOR-CAP, WINCH SWITCH	1	18.18+iva
19	7518914	SCREW	2	5.76+iva
20	2415060	PLUG-HARNESS BATTERY CHARGE	1	47.35+iva
21	7082073	CLIP-ROUTING	1	37.67+iva
22	7082404	CLIP-EDGE, 3-6MM THICKNESS	1	12.91+iva
23	7081916	STRAP-PANDUIT,DBL LOOP,260MM	1	7.20+iva
24	7081808	STRAP-CABLE TIE W/EDGE CLIP	1	10.90+iva
25	4011068	FUSE-7.5 MINI BLADE	1	20.51+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
