A20SWE57F1/S57C1/C2

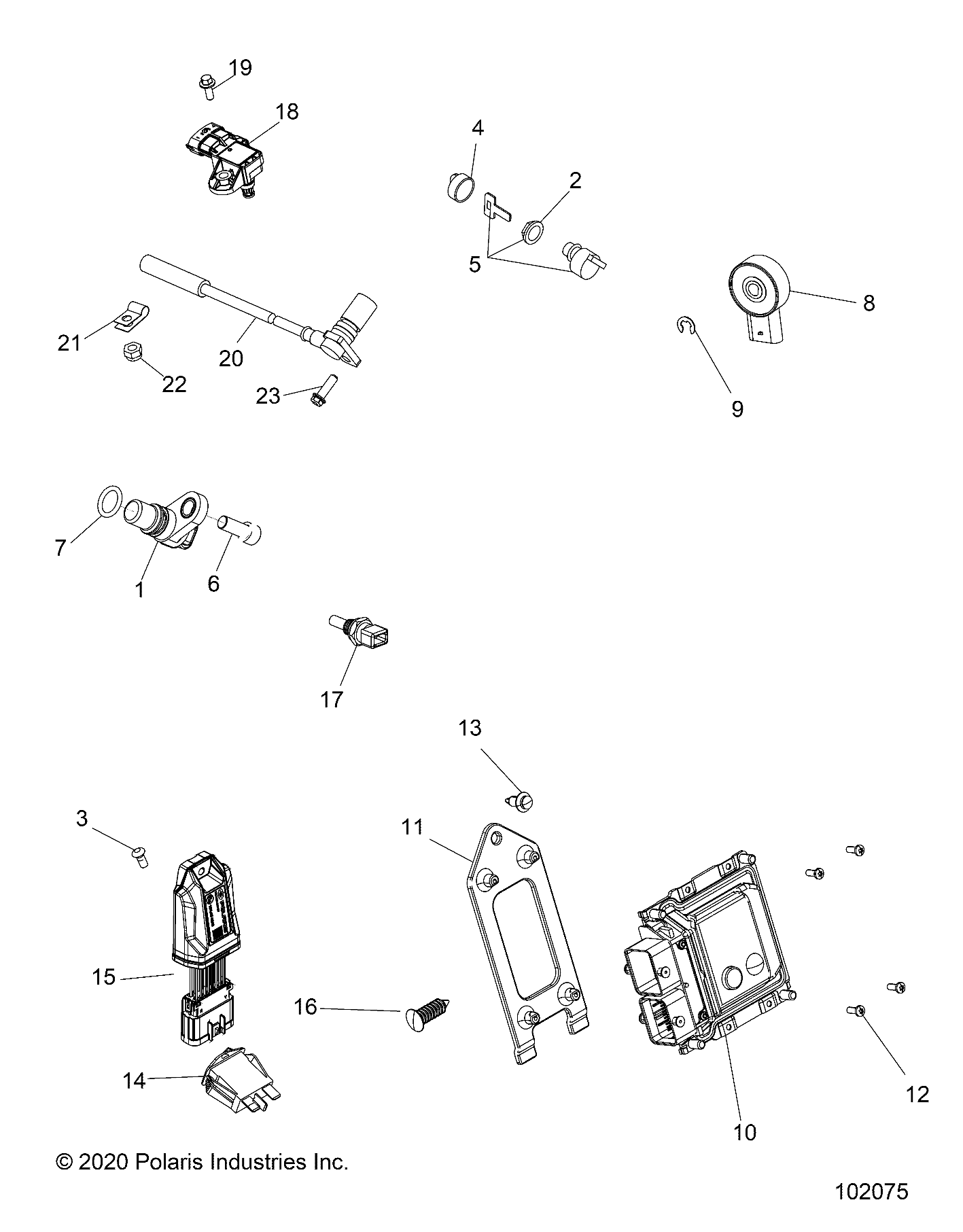

ELECTRICAL, SWITCHES, SENSORS AND ECM

#	Referencia	Descrição	Quant(*)	PVP	Stock
1	4013908	SENSOR, SPEED Esta Referencia foi alterada para : 3239727	1	Alterada
2	5433733	NUT-IGNITION SWITCH,HOBBS   Consulte-nos podemos ter uma solução	1	Obsoleta
3	7512084	SCR-10-24X1/2,PHTXTRIRD,SEMS-Y Â	2	5.72+iva
4	5433534	COVER, KEY Â	1	39.08+iva
5	4010321	BLANK, KEY, SERIES 2200, 2300, 2700, 2800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.	1	31.27+iva
5	4010278	BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.	1	25.02+iva
5	4012166	SWITCH, KEY, 4 POSITION [INCL. 5,7,KEY]	1	116.53+iva
6	3234247	SCREW Â	1	7.35+iva
7	3234302	O-RING Â	1	9.82+iva
8	7661999	SWITCH, ROTARY, 2 PIN RESISTIVE [GEAR POSITION]	1	177.75+iva
9	3233834	RING, RETAINING Â	1	12.78+iva
10	4014125	ECM, NO START, ME17 Â	1	877.88+iva
11	5438708-070	MOUNT, ECM, REAR, BLACK Â	1	11.72+iva
12	7519091	SCREW Â	4	4.28+iva
13	7661855	RIVET Â	1	5.72+iva
14	4011074	SWITCH, WORK LIGHT, ON/OFF [F1]	1	42.63+iva
14	4016240	SWITCH-WORK LIGHT,ILLUMIN,PRNT [C1][C2]	1	37.32+iva
15	4017177	MODULE-FLASH,TURN,TRAILER,TRC Â	1	107.17+iva
16	7670101	CLIP-XMAS TREE, .945 X .228 [FOR USE WITH 4017177]	1	7.13+iva
17	4010644	SENSOR, THERMISTER Â	1	114.32+iva
18	2411528	SENSOR, T-MAP, DSS3-TF Â	1	142.90+iva
19	7516603	SCR-HXFL-M5X0.8X14 18-8 Â	1	12.78+iva
20	2411719	SENSOR, CRANK POSITION Â	1	150.42+iva
20	2414984	ASM-SENSOR CRANK POSITION Â	1	130.52+iva
20	5814858	SHIELD-HEAT,WRAP,CPS Â	1	31.27+iva
21	7080367	Clamp, Rubber Coated Â	1	7.13+iva
22	7542343	NUT, FLANGED NYLOK, 5/16 Â	1	7.13+iva
23	7518514	BOLT-M8X1.25X25,HXFLG-OLIVE D Â	1	7.13+iva

Alterada descontinuada Activa

• (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
