A20SWE57F1/S57C1/C2

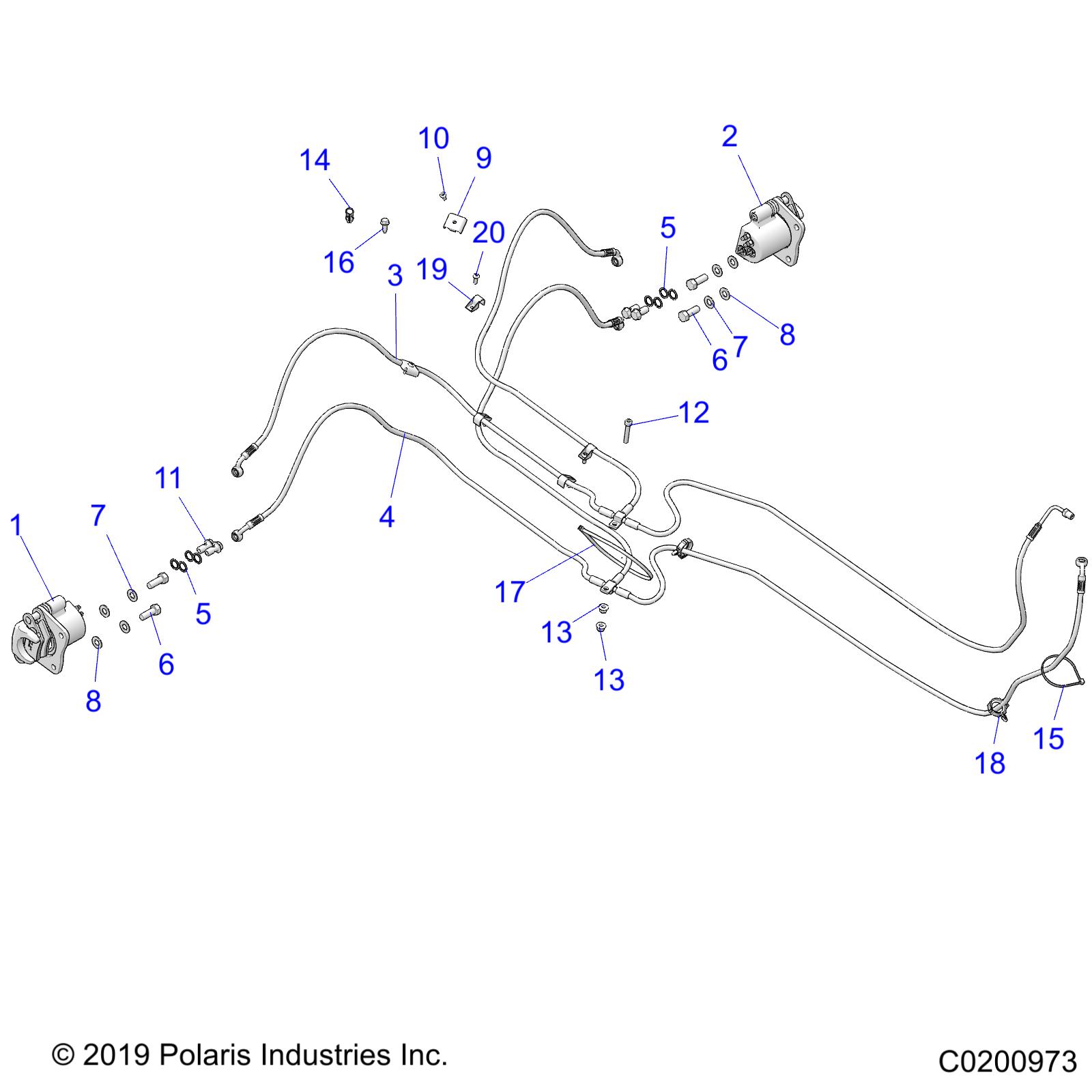

BRAKES, REAR BRAKE LINES
| # | Referencia | Descrição | Quant(*) | PVP | Stock |
|---|---|---|---|---|---|
| 1 | 1911415 | ASM-CALIPER,DUAL INPUT,MM | 1 | 417.07+iva |  |
| 2 | 1912408 | ASM-CLPR,1.5",1",DIC,REAR MT,L | 1 | 280.32+iva | |
| 3 | 1913478 | LINE-BRK,REAR,SERV,3-WAY,JF | 1 | 130.22+iva | |
| 4 | 1913479 | LINE-BRK,REAR,AUX,3-WAY,JF | 1 | 113.37+iva | |
| 5 | 5413212 | SEAL | 8 | 11.72+iva | |
| 5 | 5413212 | SEAL | 8 | 11.72+iva | |
| 6 | 7512457 | SCREW | 4 | 7.13+iva | |
| 6 | 7512457 | SCREW | 4 | 7.13+iva | |
| 7 | 7552603 | WASHER, SPRING LOCK | 4 | 4.28+iva |  |
| 7 | 7552603 | WASHER, SPRING LOCK | 4 | 4.28+iva | |
| 8 | 7556188 | WASHER, FLAT | 4 | 5.72+iva | |
| 8 | 7556188 | WASHER, FLAT | 4 | 5.72+iva | |
| 9 | 7670126 | CLIP, RETAINING, DUAL | 2 | 7.13+iva | |
| 10 | 7517756 | SCREW | 2 | 5.72+iva | |
| 11 | 1910499 | BOLT, BANJO | 4 | 11.72+iva | |
| 12 | 7521143 | SCR-DIN912-M6X35X1-GR8.8 ZW | 1 | 0.30+iva | |
| 13 | 7547274 | NUT-M6 FLANGE,NYLOC | 2 | 5.72+iva | |
| 13 | 7547274 | NUT-M6 FLANGE,NYLOC | 2 | 5.72+iva | |
| 14 | 7080756 | CLIP, SNAP IN | 2 | 7.13+iva | |
| 15 | 7080138 | PANDUIT STRAP | 4 | 3.12+iva | |
| 16 | 7517386 | SCREW | 2 | 5.72+iva | |
| 17 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 1 | 4.17+iva | |
| 18 | 4020149 | CLIP, ROSEBUD | 2 | 8.58+iva | |
| 19 | 7081940 | CLIP, HALF | 4 | 5.72+iva | |
| 20 | 7512024 | SCREW | 4 | 7.13+iva | |
- • (Quant *) este campo é a quantidade de unidades necessárias, apresentados nesta imagem ,mas é vendido à unidade.
